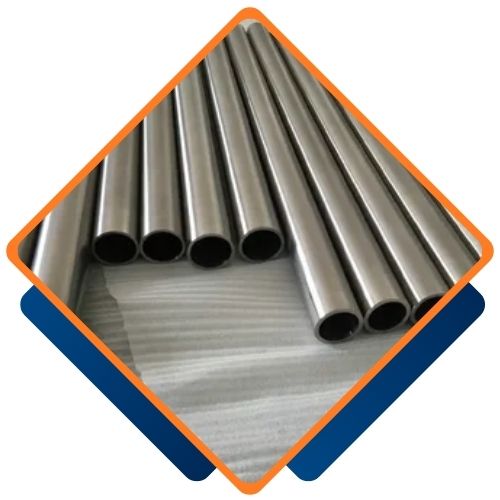

Aman Pipes and Tubes, a prominent manufacturer and supplier located in Hyderabad, India, is dedicated to delivering top-notch Titanium Grade 5 Tubing to industries around the world. Renowned for their precision engineering and unwavering commitment to quality, Aman Pipes and Tubes provides high-performance tubing solutions that adhere to international standards. Their Titanium Gr 5 Tubing is crafted for exceptional strength, corrosion resistance, and lightweight durability, making it perfect for critical applications. With a strong emphasis on innovation, timely delivery, and customer satisfaction, the company has earned a solid reputation in sectors like aerospace, marine, medical, and industrial engineering.
Titanium Grade 5 Tubing, often referred to as Ti-6Al-4V, consists of about 90% titanium, 6% aluminum, and 4% vanadium. This alloy is celebrated for its remarkable strength-to-weight ratio, resistance to corrosion, and performance at high temperatures. It boasts a tensile strength of around 895 MPa, a yield strength of approximately 828 MPa, and an elongation of 10–15%. Titanium Gr 5 maintains its structural integrity even in extreme conditions and showcases excellent weldability and formability, making it ideal for applications that require both durability and performance in challenging environments or weight-sensitive designs.
Specification : ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
Pipe Range : ½”NB to 24”NB / SCH 10 – SCH XXS
Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Al | Fe | O | Ti | V |
|---|---|---|---|---|
| max | max | max | max | max |
| 6 | 0.25 | 0.2 | 90 | 4 |
| Hardness, Brinell | 334 | 334 | Estimated from Rockwell C. |
|---|---|---|---|
| Hardness, Knoop | 363 | 363 | Estimated from Rockwell C. |
| Hardness, Rockwell C | 36 | 36 | |
| Hardness, Vickers | 349 | 349 | Estimated from Rockwell C. |
| Tensile Strength, Ultimate | 950 MPa | 138000 psi | |
| Tensile Strength, Yield | 880 MPa | 128000 psi | |
| Elongation at Break | 14 % | 14 % | |
| Reduction of Area | 36 % | 36 % | |
| Modulus of Elasticity | 113.8 GPa | 16500 ksi | |
| Compressive Yield Strength | 970 MPa | 141000 psi | |
| Notched Tensile Strength | 1450 MPa | 210000 psi | Kt (stress concentration factor) = 6.7 |
| Ultimate Bearing Strength | 1860 MPa | 270000 psi | e/D = 2 |
| Bearing Yield Strength | 1480 MPa | 215000 psi | e/D = 2 |
| Poisson’s Ratio | 0.342 | 0.342 | |
| Charpy Impact | 17 J | 12.5 ft-lb | V-notch |
| Fatigue Strength | 240 MPa | 34800 psi | at 1E+7 cycles. Kt (stress concentration factor) = 3.3 |
| Fatigue Strength | 510 MPa | 74000 psi | Unnotched 10,000,000 Cycles |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Titanium Gr 5 Tubing from Aman Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Aman Pipes and Tubes, a leading supplier of Titanium Gr 5 Tubing in Hyderabad, India, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Aman Pipes and Tubes, we provide custom sizes of Titanium Gr 5 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
Titanium Gr 5 Tubing finds extensive use in industries that prioritize high strength, low weight, and corrosion resistance. In aerospace, it’s employed in airframes, hydraulic systems, and engine components due to its outstanding mechanical properties and fatigue resistance. In the marine industry, it’s utilized in offshore platforms, ship structures, and underwater systems. Medical applications include surgical instruments and implants, while the chemical and power sectors use it for heat exchangers, condensers, and reactors. Its ability to endure extreme temperatures and corrosive environments makes it a go-to choice for advanced engineering applications.
