Home > Stainless Steel > Stainless Steel Oval Pipes

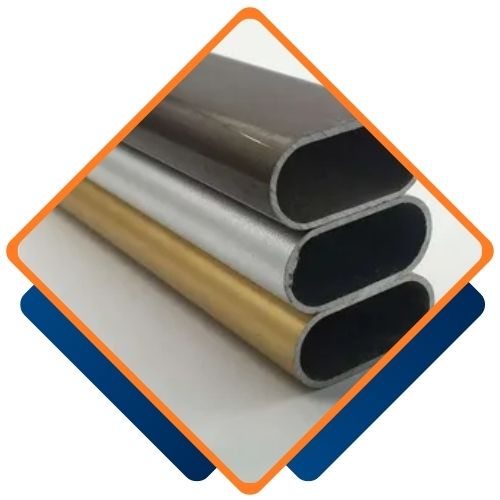

Aman Pipes and Tubes, one of the foremost manufacturers and suppliers in Hyderabad, India, is renowned for offering superior quality stainless steel oval pipes customized to cater to various industrial demands. As part of its firm commitment to quality, innovation, and customer satisfaction, Aman Pipes and Tubes has earned a good reputation within domestic and global markets. These oval pipes are made from the latest manufacturing methods and top-quality stainless steel to provide strength, corrosion resistance, and beauty. Suitable for decorative and functional use, Aman’s stainless steel oval pipes come in different sizes, grades, and finishes to suit individual client requirements.
Aman stainless steel oval pipes consist of iron with 18–20% chromium and 8–10.5% nickel, with small proportions of carbon, manganese, silicon, and molybdenum depending on the grade. These add corrosion resistance and mechanical strength. The pipes have a tensile strength of about 515–620 MPa and yield strength of around 205–275 MPa, with elongation of up to 40%. The hardness is between 70–95 HRB. This blend of structure and mechanical properties qualifies them for structural integrity and durability under harsh conditions.
| Size | 1/2″ NB to 24″ NB |
| Grades | TP – 304,304L,316,316L,201 |
| Type | Hot Finished, Seamless, Welded, EFW, ERW – Oval Pipes |
| Standards | ASTM A249 – A269 – A312 – A358 – A409 – A554 – A778 – A789 – A790 |
| TOLERANCE on Length | Commercial Length: 6000mm +/- 30mm Fix Length: from 1200 mm up to 12000mm with a tolerance up to -0/+ 5mm |
| Finish | Polished Grit 120 – 600, Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1mm,Mirror Polished |
| Stainless Steel Oval Pipes | Wall Thickness & Weight | ||||||
|---|---|---|---|---|---|---|---|
| Nominal Pipe Size | Outside Diameter | Schedule 5S | Schedule 10S | Schedule 40S | |||
| W.T. | W.T. | W.T. | |||||
| in inch | in mm | mm | kg/Mt. | mm | kg/Mt. | mm | kg/Mt. |
| 1/2 | 21.34 | 1.65 | 0.81 | 2.11 | 1.01 | 2.77 | 1.28 |
| 3/4 | 26.67 | 1.65 | 1.03 | 2.11 | 1.3 | 2.87 | 1.70 |
| 1 | 33.4 | 1.65 | 1.31 | 2.77 | 2.12 | 3.38 | 2.53 |
| 1 1/4 | 42.16 | 1.65 | 1.67 | 2.77 | 2.72 | 3.56 | 3.43 |
| 1 1/2 | 48.26 | 1.65 | 1.92 | 2.77 | 3.15 | 3.68 | 4.10 |
| 2 | 60.33 | 1.65 | 2.42 | 2.77 | 3.98 | 3.91 | 5.51 |
| 2 1/2 | 73.03 | 2.11 | 3.74 | 3.05 | 5.03 | 5.16 | 8.75 |
| 3 | 88.9 | 2.11 | 4.57 | 3.05 | 6.54 | 5.49 | 11.44 |
| 3 1/2 | 101.6 | 2.11 | 5.25 | 3.05 | 7.51 | 5.74 | 13.75 |
| 4 | 114.3 | 2.11 | 5.95 | 3.05 | 8.48 | 6.02 | 16.29 |
| 5 | 141.3 | 2.77 | 9.59 | 3.4 | 11.72 | 6.55 | 22.0 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing stainless steel Oval pipes from Aman Pipes and Tubes ensures high-quality materials with excellent corrosion resistance and durability. Our products are tailored to meet diverse industry standards, offering reliability and versatility for various applications. Our commitment to customer service and timely delivery makes us a trusted supplier.
Aman Pipes and Tubes, one of the largest suppliers of Stainless Steel Oval Pipes in Hyderabad, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| OVAL PIPE SIZE | |
| 11 x 19 | 0.9mm – 1.5mm |
| 12 x 23 | 0.9mm – 1.5mm |
| 13 x 33 | 0.9mm – 1.5mm |
| 15 x 33 | 0.9mm – 1.5mm |
| 19 x 45 | 0.9mm – 1.5mm |
| 25 x 65 | 0.9mm – 1.5mm |
| STAINLESS STEEL OVAL PIPE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
Yes, we offer custom sizes for Stainless Steel Oval Pipes to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.
Stainless steel oval pipes are used extensively in industries because of their distinctive shape, durability, and visual appeal. In architecture and building, they function as a structural component for balustrades, railings, and ornamental frameworks. In the transportation and automotive industry, stainless steel oval pipes are utilized for exhaust systems, frames, and supporting structures. They are also used in furniture production, public structures, marine, and piping systems in industry where robustness and anti-corrosion requirements are essential. Aman Pipes and Tubes ensures their oval pipes are up to the stringent standards necessary for functional uses as well as design-oriented uses, guaranteeing reliability in every installation.
