Home > Stainless Steel > Stainless Steel Corrugated Tubing

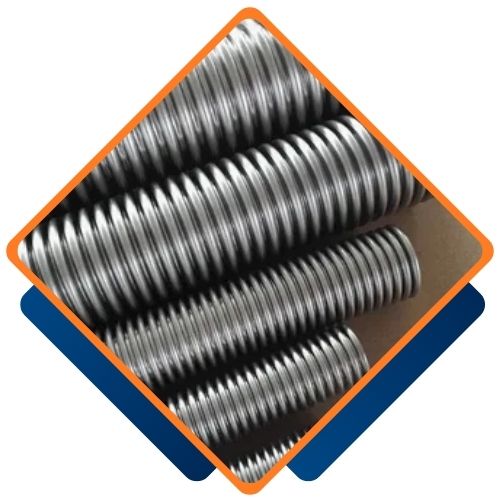

Aman Pipes and Tubes, located in Hyderabad, India, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel Corrugated Tubing. With a keen focus on innovation, precision engineering, and ensuring customer satisfaction, the company provides durable and flexible tubing solutions that cater to a wide range of demanding applications. Their corrugated tubing is crafted to deliver exceptional flexibility, pressure resistance, and corrosion protection, making it perfect for both industrial and home use. Aman Pipes and Tubes strictly follows quality standards and offers tailored solutions to meet the unique needs of clients, efficiently serving industries across India and beyond.
Stainless Steel Corrugated Tubing is generally produced from grades like 304, 304L, 316, and 316L. Its makeup includes Chromium (18–20%), Nickel (8–12%), and trace amounts of Molybdenum (in 316/316L) to enhance corrosion resistance. On the mechanical side, it boasts impressive tensile strength (520–750 MPa), decent yield strength (200–300 MPa), and remarkable flexibility thanks to its corrugated design. This tubing stands up to vibration, thermal expansion, and corrosion, making it a great choice for harsh environments and varying pressure conditions without sacrificing structural integrity.
| Size Range | 6.35 mm To 50.8 mm OD |
| Length | As per Customer requirement, Maximum upto 22 Meter Long. |
| Thickness | 0.50 mm TO 6.0 mm |
| Dimenisons | ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS |
| Standard | ASTM A / ASME SA213 |
| Material | SS 304, SS 304L,SS 316,SS 316L |
| Form | Round, Square, Rectangular, Coil, U Tube, Pan Cake. |
| Shapes | Straight tube, Coil tubing |
| Type | As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed |
| Finish | SS cottugated tubes and corrugated pipes can be supplied in mechanical polished with various grits like at 80, 120, 240, 320, 400, 600 grit and mirror polished. |
| Packing | Sleeved, Ends Capped, Wooden Boxed |
| STAINLESS STEEL CORRUGATED TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 304H | S30409 | – |
| 304L | S30403 | 1.4306 |
| 310S | S31008 | 1.4845 |
| 316S | S31600 | 1.4436 |
| 316H | S31609 | – |
| 316 TI | S31635 | 1.4571 |
| 316L (2.5 MIN MOLY) | S31603 | 1.4435 |
| 316L | S31603 | 1.4404 |
| 317L | S31703 | 1.4438 |
| 321 | S32100 | 1.4541 |
| 321H | S32109 | – |
| 347 | S34700 | 1.4550 |
Choosing Stainless Steel Corrugated Tubing from Aman Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Aman Pipes and Tubes, one of the largest suppliers of Stainless Steel Corrugated Tubing in Hyderabad, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| SIZE OD | NOMINAL WALL THICKNESS | OUTSIDE DIAMETER TOLERANCE | LENGTH TOLERANCE | WALL THICKNESS TOLERANCE | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (%) |
| ½ | 12.7 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| ¾ | 19.1 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1 | 25.4 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1½ | 38.1 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2 | 50.8 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2½ | 63.5 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 3 | 76.2 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 4 | 101.6 | 0.083 | 2.11 | +/-0.015 | +/-0.38 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 6 | 152.4 | 0.109 | 2.77 | +/-0.030 | +/-0.76 | +1, -0 | +25.4, -0 | +/-10.0% |
Yes, we offer custom sizes for Stainless Steel Corrugated Tubing to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.
Stainless Steel Corrugated Tubing finds its place in numerous applications that demand flexibility, strength, and resistance to corrosion and extreme temperatures. It’s perfect for gas and fluid transport in industrial piping systems, HVAC setups, and solar water heaters. In the chemical and petrochemical sectors, it’s utilized for moving aggressive fluids and gases. On the home front, it’s commonly used in natural gas pipelines and water heater connections. Its ability to resist vibration and its flexibility make it suitable for seismic zones and protecting sensitive equipment. The corrugated design also boosts its pressure handling capabilities.
