Aman Pipes and Tubes stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel Condenser Tubing, proudly based in Hyderabad, India. With a strong focus on quality, precision, and durability, this company meets a diverse array of industrial needs through its cutting-edge manufacturing facilities and rigorous quality control measures. Specializing in corrosion-resistant and high-performance stainless steel tubing, Aman Pipes and Tubes is perfect for heat exchange and condenser applications. Thanks to its robust distribution network and customer-centric approach, the company has earned a stellar reputation in both local and global markets.
Stainless Steel Condenser Tubing is generally crafted from grades like 304, 304L, 316, and 316L. Its chemical makeup features Chromium (18–20%), Nickel (8–12%), along with trace amounts of Carbon, Manganese, and Molybdenum to boost corrosion resistance. On the mechanical side, it boasts impressive tensile strength (515–620 MPa), excellent yield strength (205–250 MPa), and an elongation rate of about 35%. These characteristics make it highly resistant to pitting, stress corrosion cracking, and scaling at high temperatures, ensuring a long service life and reliable performance even in extreme conditions.
| Specifications | ASTM A213, ASTM A249, ASTM A269 |
| Size Range | 6 mm OD to 219.1 mm OD |
| Outside Diameter | From 6mm~2500mm |
| Length | 1 Mtr Upto 32 Mtrs Long / U-Tube Length – 32 Mtrs U Tube Coil – 50 Mtrs |
| Thickness | 0.7 mm Thick To12.7 mm Thick |

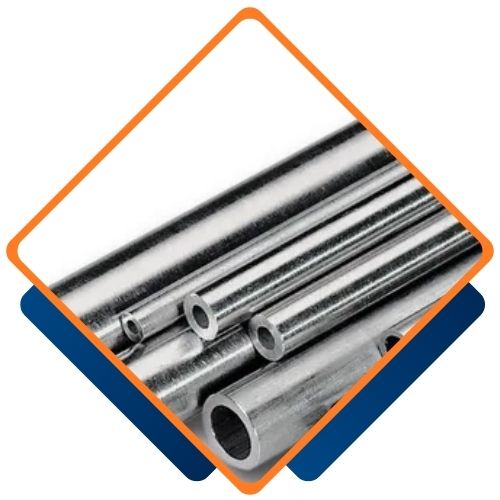

| Form | Seamless, Welded, Hot Rolled, Cold Drawn |

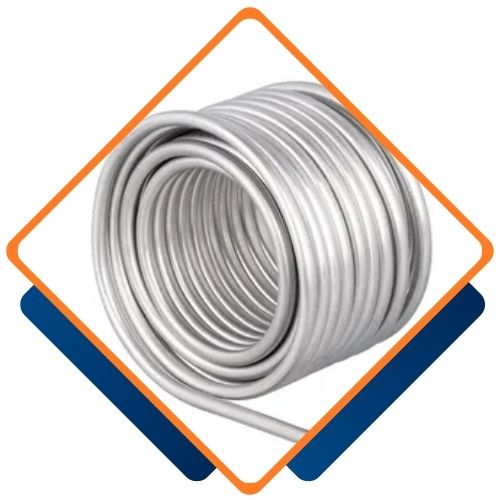

| Shapes | Straight tube, Coil tubing |
| Ends | Plain end, Bevelled end |
| Grades | TP – 304,304L,316,316L,201 |
| STAINLESS STEEL Condenser TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel Condenser Tubing from Aman Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Aman Pipes and Tubes, one of the largest suppliers of Stainless Steel Condenser Tubing in Hyderabad, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| 12.70 mm OD | x | 0.6 mm wall | in lengths up to 20 m (65.62 ft) |
| 15.00 mm OD | x | 1.22 mm wall | in lengths up to 20 m (65.62 ft) |
| 19.05 mm OD | x | 1.65 mm wall | in lengths up to 20 m (65.62 ft) |
| 25.40 mm OD | x | 2.11 mm wall | in lengths up to 20 m (65.62 ft) |
| 38.10 mm OD | x | 2.64 mm wall | in lengths up to 20 m (65.62 ft) |
Yes, we offer custom sizes for Stainless Steel Condenser Tubing to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.

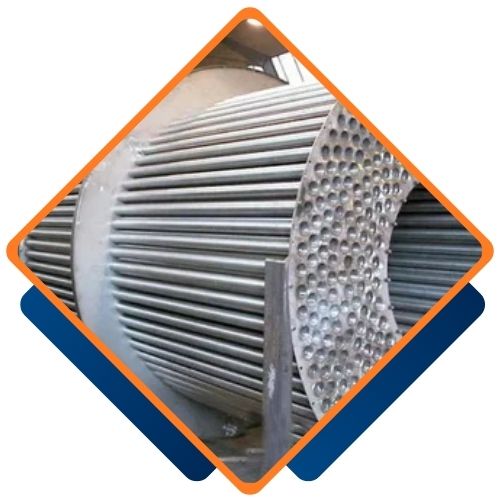

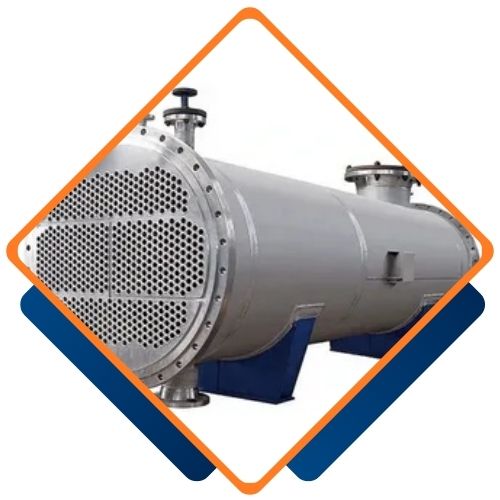

Stainless Steel Condenser Tubing finds its way into a multitude of industries, thanks to its remarkable heat transfer efficiency and resistance to corrosion. It serves as a crucial element in power plants, chemical processing facilities, HVAC systems, refrigeration units, and marine applications. This tubing is essential for condenser systems in steam turbines, chillers, and heat exchangers, facilitating effective condensation and thermal conductivity. Moreover, its durability and low maintenance requirements make it a great fit for challenging and corrosive environments, such as offshore platforms and coastal industrial sites. Its adaptability not only enhances energy efficiency but also contributes to long-term cost savings.
