Home > Stainless Steel > Stainless Steel 420 Tubing
Aman Pipes and Tubes, a well-respected manufacturer and supplier based in Hyderabad, India, specializes in providing top-notch Stainless Steel 420 Tubing for a variety of demanding industrial and engineering needs. SS 420 is a martensitic stainless steel grade celebrated for its remarkable hardness, strength, and wear resistance. This tubing can be heat-treated and offers moderate corrosion resistance, making it perfect for both structural and functional applications. Aman Pipes and Tubes prides itself on precision manufacturing, rigorous quality control, and prompt delivery. Their SS 420 tubing solutions are relied upon by industries like automotive, tool manufacturing, medical equipment, and mechanical engineering, ensuring long-lasting performance even in tough working conditions.
Stainless Steel 420 Tubing is composed of Chromium (12–14%) and a minimum of 0.15% Carbon, along with small amounts of Manganese, Silicon, Phosphorus, and Sulfur. This martensitic grade can be hardened through heat treatment, achieving impressive strength and wear resistance. It typically boasts a tensile strength of 700–850 MPa, a yield strength of around 345 MPa, and an elongation of about 15%. SS 420 tubing performs well at elevated temperatures up to 650°C and is magnetic in all conditions. It also offers decent corrosion resistance in mild environments, making it suitable for moderate to aggressive service conditions.
Item | Stainless Steel 420 Tube |
Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
Type | Seamless / ERW / Welded / Fabricated / CDW |
Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |

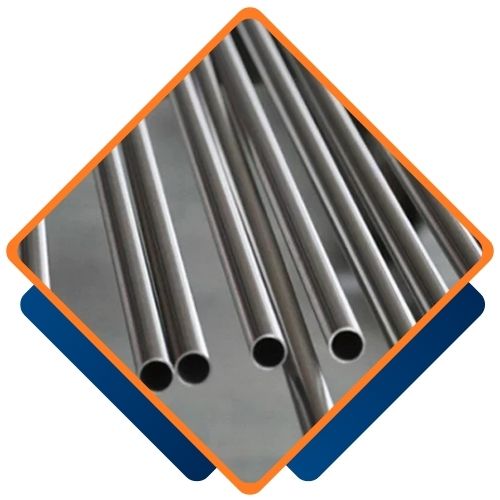

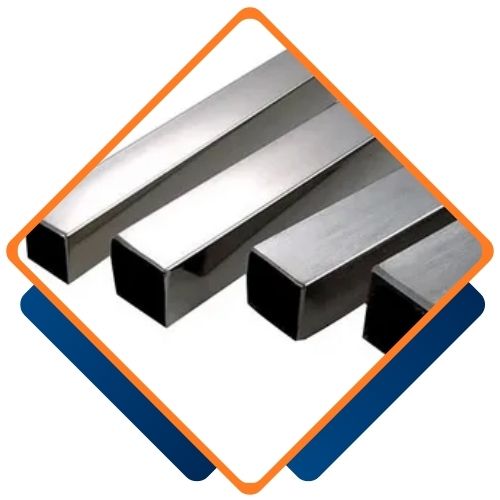

Form | 420 Round Tubing, 420 Square Tubes, 420 Rectangular Tube, “U” Shape 420 Tubing, 420 Hydraulic Tubes |
Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
Dimension | All Tubes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | |
|---|---|---|---|---|---|---|---|
| 420 | Min. max. | 0.15 – | – 1 | – 1 | – 0.040 | – 0.03 | 12.0 14.0 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed * | 655 | 345 | 25 | 241 max | – |
| 204 | 1600 | 1360 | 12 | 444 | 20 |
| 316 | 1580 | 1365 | 14 | 444 | 19 |
| 427 | 1620 | 1420 | 10 | 461 | # |
| 538 | 1305 | 1095 | 15 | 375 | # |
| 593 | 1035 | 810 | 18 | 302 | 22 |
| 650 | 895 | 680 | 20 | 262 | 42 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 420 Tubing from Aman Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Aman Pipes and Tubes, one of the largest suppliers of Stainless Steel 420 Tubing in Hyderabad, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Stainless Steel 420 Tubing to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.
Stainless Steel 420 Tubing is commonly utilized in scenarios where high mechanical strength, hardness, and abrasion resistance are crucial. It’s perfect for crafting surgical and dental instruments, cutting tools, valve components, shafts, and industrial blades. In the automotive industry, it finds applications in engine components, bushings, and wear parts. SS 420 tubing is also a great fit for the oil & gas and petrochemical sectors, where moderate corrosion resistance and durability are essential. Its heat-treatable properties make it a favored option in engineering applications that require high performance and reliability.
