Home > Stainless Steel > Stainless Steel 316L Tubing
Aman Pipes and Tubes, located in Hyderabad, India, stands out as a leading manufacturer and supplier of Stainless Steel 316L Tubing. This tubing is celebrated for its remarkable corrosion resistance, impressive durability, and top-notch performance even in tough conditions. Crafted to adhere to the highest industry standards, these tubes serve a variety of applications, spanning chemical processing, marine, and pharmaceutical sectors. With a strong emphasis on quality, precision, and customer satisfaction, Aman Pipes and Tubes delivers dependable and cost-effective solutions, ensuring that their products provide long-lasting performance for diverse industrial needs.
Stainless Steel 316L Tubing is made up of iron, chromium (16-18%), nickel (10-14%), molybdenum (2-3%), and a low carbon content (<0.03%), which boosts its corrosion resistance and weldability. These tubes boast an impressive tensile strength of about 485 MPa and a yield strength of 170 MPa, along with a minimum elongation of 40%. The inclusion of molybdenum enhances resistance to pitting and crevice corrosion in environments rich in chloride, while the low carbon content helps reduce carbide precipitation during welding, making it ideal for high-temperature and corrosive applications.
| Tube Range | 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG |
| Outer Diameter | 3.00 mm – 219.10 mm |
| Wall Thickness | 0.40 mm – 12.70 mm |
| Schedules | 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH |
| Length | Upto 30 meters, Custom Cut Lengths |
| Specifications | ASTM A213 / ASTM SA213 |
| Types | Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes |
| STANDARD | UNS | WERKSTOFF NR. | JIS | AFNOR | BS | GOST | EN |
| SS 316L | S31603 | 1.4404 / 1.4435 | SUS 316L | Z3CND17‐11‐02 / Z3CND18‐14‐03 | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SS | 316L |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316L |
| Tensile Strength (MPa) min | 485 |
| Yield Strength 0.2% Proof (MPa) min | 170 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316L Tubing from Aman Pipes and Tubes ensures high quality and durability, as these tubing offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Aman Pipes and Tubes, one of the largest suppliers of Stainless Steel 316L Tubing in Hyderabad, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 316L | S31603 | S31603 | – | 1.4404 | X5CrNiMo17-12-2 | 2348 | SUS 316L |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Yes, we offer custom sizes for Stainless Steel 316L Tubing to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.

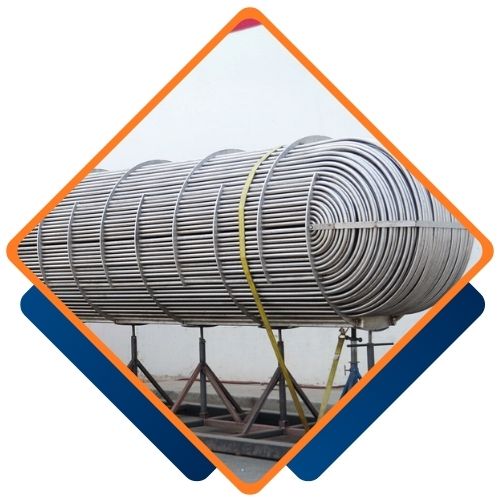

Stainless Steel 316L Tubing finds its place in industries that demand outstanding corrosion resistance and durability. You’ll commonly see these tubes in heat exchangers, condensers, and piping systems within chemical processing plants, marine equipment, and pharmaceutical production facilities. They’re also popular in the food processing and medical sectors due to their hygienic properties and resistance to chemical cleaning agents. Thanks to their excellent performance in high-salinity and acidic environments, Stainless Steel 316L Tubing is the go-to choice for critical applications where reliability and longevity are a must.
