Home > Stainless Steel >Stainless Steel 316H EFW Pipes

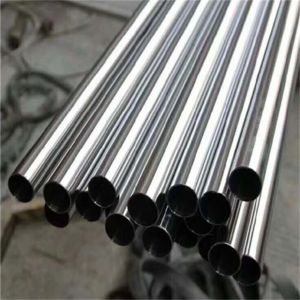

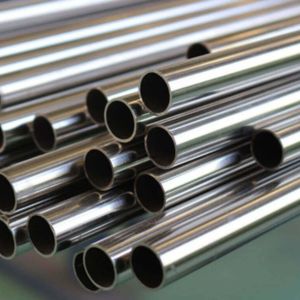

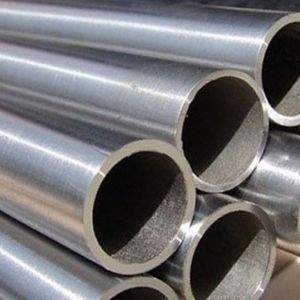

Aman Pipes and Tubes, a prominent manufacturer and supplier located in Hyderabad, India, specializes in high-quality Stainless Steel 316H EFW Pipes. These pipes are designed to endure extreme temperatures and pressure, making them perfect for critical industrial applications. Crafted using Electric Fusion Welding (EFW), 316H pipes guarantee exceptional weld strength and durability. Aman Pipes and Tubes is dedicated to delivering products that adhere to international standards, ensuring outstanding corrosion resistance, strength, and reliability. Their 316H EFW pipes find extensive use in sectors like power generation, petrochemicals, oil & gas, and heat exchangers.
Stainless Steel 316H EFW Pipes are primarily made up of chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and a higher carbon content (~0.04–0.10%), which boosts their high-temperature strength. These pipes showcase a tensile strength of around 515 MPa, yield strength of 205 MPa, and an elongation of 35–40%. They offer excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, particularly in chloride-rich environments. The EFW process guarantees robust, smooth welds that are perfect for applications requiring high integrity under pressure and temperature.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 316H | S31609 | 1.4401 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Tensile Strength | Yield Strength | Elongation |
| SS 316H | Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 316H EFW Pipes from Aman Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Grade | Density (kg/m3) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) | Elastic Modulus (GPa) | Specific Heat 0-100°C (J/kg.K) | Elec Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| 316H | 8000 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 193 | 500 | 740 |
We offer custom sizes for Stainless Steel 316H EFW Pipes to meet your specific needs. Our dedicated team at Aman Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@amanpipesandtubes.co.in.
Stainless Steel 316H EFW Pipes are widely utilized in high-temperature and high-pressure settings, especially in the petrochemical, refining, and power generation industries. Their increased carbon content enhances creep resistance, making them suitable for boilers, heat exchangers, and superheater tubes. They are also used in chemical processing plants, marine environments, and nuclear power stations due to their corrosion resistance and thermal stability. The quality of their welds and durability makes them ideal for critical piping systems where reliability, strength, and resistance to thermal fatigue are essential.
