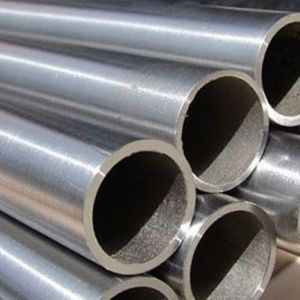

Stainless Steel 17-4 PH Pipes

Home > Stainless Steel >Stainless Steel 17-4 PH Pipes

Stainless Steel 17-4 PH Pipes Manufacturer, Supplier and Exporter in Hyderabad, India

Aman Pipes and Tubes is a reputable manufacturer and supplier of Stainless Steel 17-4 PH Pipes, located in Hyderabad, India. The company has built a solid reputation for providing high-performance, corrosion-resistant piping solutions tailored to meet the rigorous demands of the aerospace, defense, and industrial engineering sectors. These Stainless Steel 17-4 PH (Precipitation Hardening) pipes are prized for their impressive strength, hardness, and outstanding mechanical properties, whether in extreme heat or cold. With state-of-the-art manufacturing techniques and a commitment to quality control, Aman Pipes and Tubes delivers durable and dependable piping solutions to clients both in India and around the globe.

17-4 PH Stainless Steel Pipes Exporter in India, SS UNS S17400 Pipes Supplier in India, 17-4 PH Stainless Steel Pipe Manufacturer in Hyderabad , SUS 17-4 PH Pipes Price List in Hyderabad, ASTM A312 Stainless Steel 17-4 PH Pipe Distributor in Hyderabad, Stainless Steel 1.4542 Pipes in India, Stainless Steel TP17-4 PH Pipe Exporters in India

Stainless Steel 17-4 PH Pipes are made up of roughly 15–17.5% Chromium, 3–5% Nickel, 3–5% Copper, and 0.07% Carbon, along with trace amounts of Niobium. This precipitation-hardening alloy achieves remarkable strength and hardness through heat treatment. It boasts a tensile strength of up to 1310 MPa, a yield strength of 1170 MPa, and an elongation of about 10–15%, depending on the heat treatment process. Additionally, the alloy offers excellent corrosion resistance and good toughness in both base and weld conditions, making it ideal for high-stress environments that demand long-lasting durability.

Stainless Steel 17-4 PH Pipes Specification

Specifications	ASTM A312 / ASME SA312
Dimensional specification	ANSI/ASME B36.19M, ANSI/ASME B36.10M
Size	1 / 8″ NB – 24″ NB
Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Manufacturing Shapes	Hydraulic, Round, Square, Hex, Honed
Manufacturing Techniques	Normalized & as Rolled
Schedule Thickness Range	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
End Types	Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends)
Surface Finish	No.1, No.4, No.8 Mirror Finish, 2B
Value Added Services	Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing
Inspection and Test Reports	EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Seamless Pipes, Finish as per customer Requirements
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Heat Treatment	Normalized, Normalized & Tempered
Packing of Seamless Pipes	Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials	Sizes and Specifications other than above can be on request

Stainless Steel 17-4 PH Pipes Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
SS 17-4 PH	0.07	1.0 max	1.0 max	0.03	3.0 – 5.0	Bal	3.0 – 5.0	15.0 – 17.5

SS 17-4 PH Pipes Mechanical Properties

Grade	Tensile Strengtd (ksi) min	Elongation (% in 50mm) min	Yield Strengtd 0.2% Proof (ksi) min	Hardness
17-4 PH	135	16	105	277

Equivalent Grades of Stainless Steel 17-4 PH Pipe

STANDARD	WERKSTOFF NR.	UNS
SS 17-4 PH	1.4542	S17400

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ASME SA 312 TP17-4 PH Pipes Hyderabad, Stainless Steel 17-4 PH Pipes Exporters in Hyderabad, 17-4 PH Stainless Steel Pipe Manufacturers in Hyderabad , SS UNS S17400 Pipes Supplier in Hyderabad, SS 17-4 PH Schedule 20 Pipe Stockist in in India, SS 17-4 PH Pipes Distributor in India, 17-4 PH Stainless Steel Pipes in India

Why Choose Stainless Steel 17-4 PH Pipes from Aman Pipes and Tubes?

Choosing Stainless Steel 17-4 PH Pipes from Aman Pipes and Tubes ensures the highest quality products and industry standards. Their pipe offers exceptional corrosion resistance and durability, making it ideal for demanding applications. Brydon offers a wide range of sizes and modifications to meet specific project requirements. Focusing on customer service, they ensure on-time delivery and support throughout the buying process. Their competitive pricing and commitment to quality make them a choice in the market. Additionally, Brydon’s expertise in stainless steel components ensures reliable and durable performance.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 17-4 PH Pipes Supplier in Hyderabad, India

Aman Pipes and Tubes, one of the largest suppliers of Stainless Steel 17-4 PH Pipes in Hyderabad, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

Stainless Steel 17-4 PH Pipe Sizes in MM

Nominal Pipe Size		Outside Diameter (mm)	Nominal Wall Thickness Schedule
NPS	DN	OD	SCH5s	SCHl0s	SCH 10	SCH 20	SCH 30	SCH40s	SCH STD	SCH 40	SCH 60	SCH80s	SCH XS	SCH 80	SCH 100	SCH 120	SCH 140	SCH 160	SCH XXS
1/8	6	10.3		1.24				1.73	1.73	1.73		2.41	2.41	2.41
1/4	8	13.7		1.65				2.24	2.24	2.24		3.02	3.02	3.02
3/8	10	17.1		1.65				2.31	2,31	2.31		3.20	3.20	3.20
1/2	15	21.3	1.65	2.11				2.77	2.77	2.77		3.73	3.73	3.73				4.78	7.47
3/4	20	26.7	1.65	2.11				2.87	2.87	2.87		3.91	3.91	3.91				5.56	7.82
1	25	33.4	1.65	2.77				3.38	3.38	3.38		4.55	4.55	4.55				6.35	9.09
1 1/4	32	42.2	1.65	2.77				3.56	3.56	3,56		4.85	4.85	4.85				6.35	9.70
1 1/2	40	48.3	1.65	2.77				3.68	3.68	3.68		5.08	5.08	5.08				7.14	10.15
2	50	60.3	1.65	2.77				3.91	3.91	3.91		5.54	5.54	5.54				8.74	11.07
2 1/2	65	73	2.11	3.05				5.16	5.16	5.16		7.01	7.01	7.01				9.53	14.02
3	80	88.9	2.11	3.05				5.49	5.49	5.49		7.62	7.62	7.62				11.13	15.24
3 1/2	90	101.6	2.11	3.05				5.74	5.74	5.74		8.08	8.08	8.08
4	100	114.3	2.11	3.05				6.02	6.02	6.02		8.56	8.56	8.56		11.13		13.49	17.12
5	125	141.3	2.77	3.40				6.55	6.55	6.55		9.53	9,53	9.53		12.70		15.88	19.05
6	150	168.3	2.77	3.40				7.11	7.11	7.11		10.97	10.97	10.97		14.27		18.26	21.95
8	200	219.1	2.77	3.76		6.35	7.04	8.18	8.18	8.18	10.31	12.70	12.70	12.70	15.09	18.26	20.62	23.01	22.23
10	250	273.1	3.40	4.19		6.35	7.80	9.27	9.27	9.27	12.70	12.70	12.70	15.09	18.26	21.44	25.40	28.58	25.40
12	300	323.9	3.96	4.57		6.35	8.38	9.53	9.53	10.31	14.27	12.70	12.70	17.48	21.44	25.40	28.58	33.32	25.40
14	350	355.6	3.96	4.78	6.35	7.92	9.53		9.53	11.13	15.09		12.70	19.05	23.83	27.79	31.75	35.71
16	400	406.4	4.19	4.78	6.35	7.92	9.53		9.53	12.70	i6.66		12.70	21.44	26.19	30.96	36.53	40.49
18	450	457.2	4.19	4.78	6.35	7.92	11.13		9.53	14.27	19.05		12.70	23.83	29.36	34.93	39,67	45.24
20	500	508	4.78	5.54	6.35	9.53	12.70		9.53	15.09	20.62		12.70	26.19	32.54	38.10	44.45	50.01
22		559	4.78	5.54	6.35	9.53	12.70		9.53		22.23		12.70	28.58	34.93	41.28	47.63	53.98
24	600	610	5.54	6.35	6.35	9.53	14.27		9.53	17.48	24.61		12.70	30.96	38.89	46.02	52.37	59.54
26		660			7.92	12.70			9.53				12.70
28	700	711			7.92	12.70	15.88		9.53				12.70
30		762	6.35	7.92	7.92	12.70	15.88		9.53				12.70
32	800	813			7.92	12.70	15.88		9.53	17.48			12.70
34		884			7.92	12.70	15.88		9.53	17.48			12.70
36	900	914			7.92	12.70	15.88		9.53	19.05			12.70
38		965							9.53				12.70
40	1000	1016						9.53		12.70
42		1067				12.70	15.88		9.53	19.05			12.70
44	1100	1118							9.53				12.70
46		1168							9.53				12.70
48	1200	1219							9.53			12.70
52		1321
56	1422
60	1524

Weight Chart of Stainless Steel 17 – 4 PH Pipes

Nominal Pipe Size		Outside Diameter	Schedule 5 S		Schedule 10 S		Schedule 20 S		Schedule 40 S		Schedule 80 S		Schedule 160 S		XXS
mm	inch	mm	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)
3	1/8	10.3	1.2	0.20	1.24	0.28	1.5	0.33	1.73	0.37	2.41	0.47	–	–	–	–
6	1/4	13.7	1.2	0.37	1.65	0.49	2.00	0.58	2.24	0.630	3.02	0.80	–	–	–	–
10	3/8	17.1	1.2	0.47	1.65	0.63	2.00	0.74	2.31	0.840	3.20	1.10	–	–	–	–
15	1/2	21.3	1.65	0.80	2.11	1.00	2.30	1.07	2.77	1.27	3.73	1.62	4.75	1.94	7.47	2.55
20	3/4	26.7	1.65	1.03	2.11	1.28	2.55	1.52	2.87	1.69	3.91	2.20	5.56	2.90	7.82	3.64
25	1	33.4	1.65	1.30	2.77	2.09	2.55	1.94	3.38	2.50	4.55	3.24	6.35	4.24	9.09	5.45
32	1.1/4	42.2	1.65	1.65	2.77	2.70	3.00	2.90	3.56	3.39	4.85	4.47	6.35	5.61	9.70	7.77
40	1.1/2	48.3	1.65	1.91	2.77	3.11	3.00	3.55	3.68	4.05	5.08	5.41	7.14	7.25	11.1	10.18
50	2	60.3	1.65	2.40	2.77	3.93	3.00	4.24	3.91	5.44	5.54	7.48	8.74	11.11	11.07	13.44
65	2.1/2	73.0	2.11	3.69	3.05	5.26	4.00	6.81	5.16	8.63	7.01	11.41	9.53	14.91	14.02	20.39
80	3	88.9	2.11	4.51	3.05	6.45	4.00	8.37	5.49	11.29	7.62	15.27	11.1	21.30	15.24	27.68
100	4	114.3	2.11	5.84	3.05	8.36	4.50	12.18	6.02	16.07	8.56	22.32	13.49	33.54	17.12	41.03
125	5	141.3	2.77	9.47	3.40	11.57	5.00	16.80	6.55	21.8	9.53	30.97	15.88	49.11	19.05	57.43
150	6	168.3	2.77	11.32	3.40	13.84	6.35	25.36	7.11	28.26	10.97	42.56	18.25	67.53	21.95	79.22
200	8	219.1	2.77	14.79	3.76	19.96	6.35	33.31	8.18	42.55	12.7	64.64	23.01	111.27	22.23	107.92
250	10	273.1	3.40	22.63	4.19	27.78	6.35	41.77	9.27	60.31	12.7	96.01	28.58	172.33	25.40	155.15
300	12	323.8	3.96	31.25	4.57	36.00	6.35	49.7	9.53	73.88	12.7	132.05	33.32	238.76	25.40	186.97
350	14	355.6	3.96	34.36	4.78	41.3	7.92	67.80	11.13	94.59

Stainless Steel 17-4 PH Pipe Sizes in MM

SS 17-4 PH Schedule 40 Pipe Price List in Hyderabad, Stainless Steel S17400 Pipes Supplier in India, SS 17-4 PH Pipes Price Per Kg, ASTM A312 Stainless Steel 17-4 PH Pipe Exporter in Hyderabad , AISI 17-4 PH Pipes Stockist in Hyderabad, 1 inch SS 17-4 PH Pipe Price List in India, SS 17-4 PH Pipe Weight Chart, SS 17-4 PH Schedule 20 Pipe Thickness, 17-4 PH Austenitic Stainless Steel Pipe Manufacturers in Hyderabad

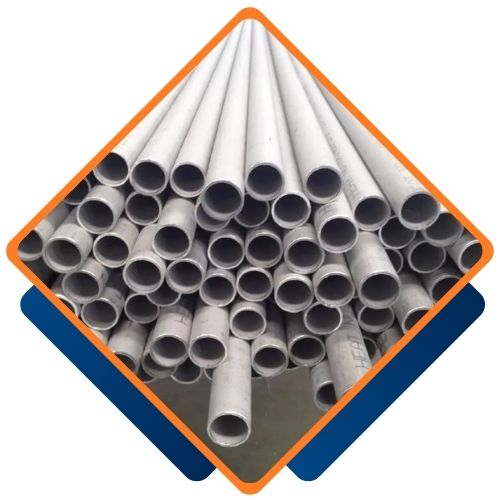

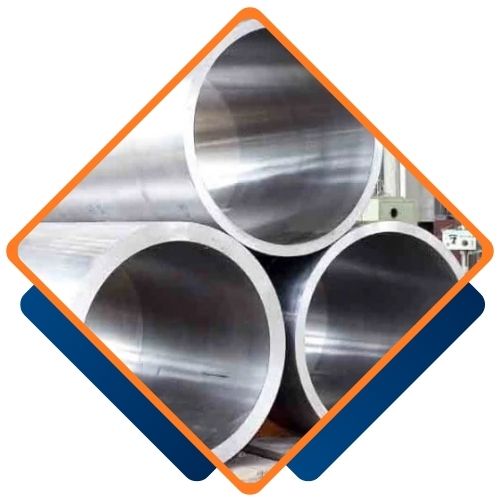

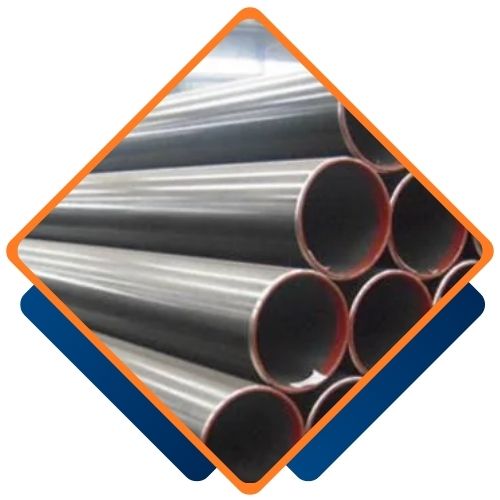

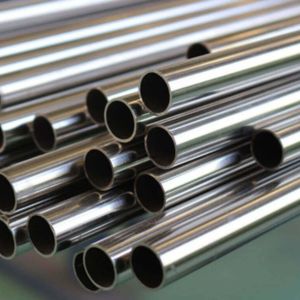

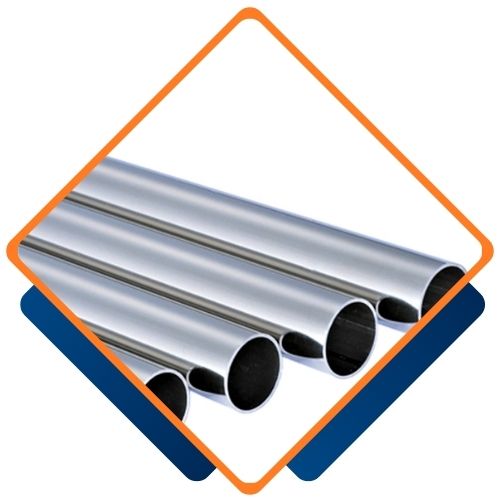

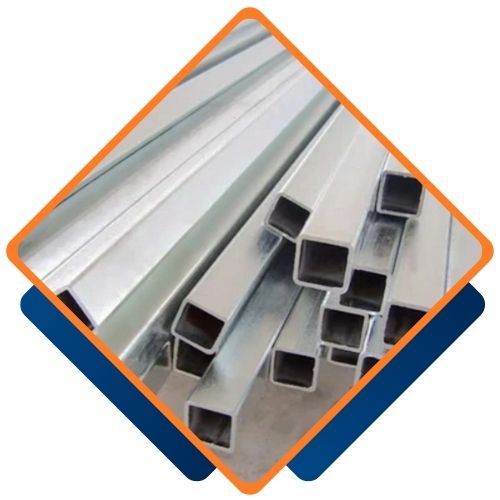

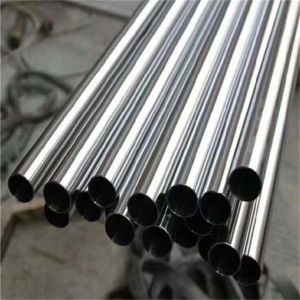

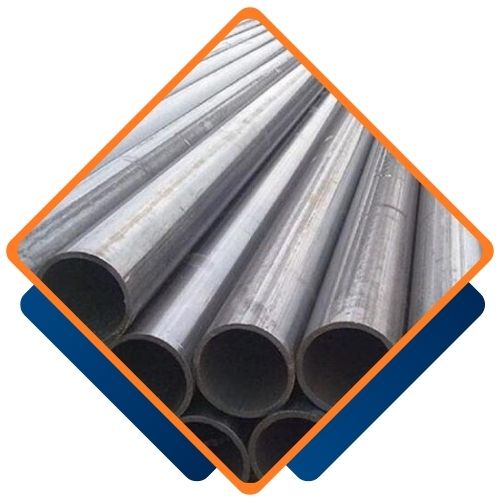

Types of Stainless Steel 17-4 PH Pipes

Are Custom Sizes Available for Stainless Steel 17-4 PH Pipes?

Yes, we offer custom sizes for Stainless Steel 17-4 PH Pipes to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.

SS UNS S17400 Pipes Exporters in India, ASME SA 312 TP17-4 PH Pipes Hyderabad , SUS 17-4 PH Pipes Distributor in India, 17-4 PH SS Pipes Price Per Kg, 17-4 PH Austenitic Stainless Steel Pipe Supplier in Hyderabad, SS 17-4 PH Pipe Stockist in Hyderabad, Stainless Steel 17-4 PH Pipes Dealer in Hyderabad

Stainless Steel 17-4 PH Pipe Uses

Stainless Steel 17-4 PH Pipes find extensive use in applications that require exceptional strength, hardness, and corrosion resistance. In the aerospace and defense sectors, they are utilized for structural components, fasteners, and engine parts. In the oil and gas industry, these pipes are essential for high-pressure valves, shafts, and pump components. The marine sector relies on them for propeller shafts and rig components, thanks to their resistance to seawater corrosion. Furthermore, you can find these pipes in chemical processing equipment, nuclear reactors, and paper mills, showcasing their versatility across various demanding applications.
