Home > Nickel Alloy > Nickel Alloy Welded Tubing

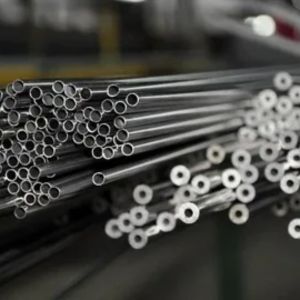

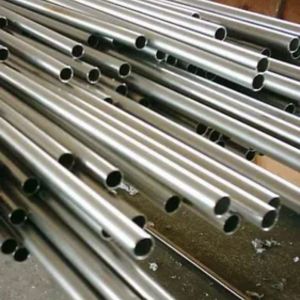

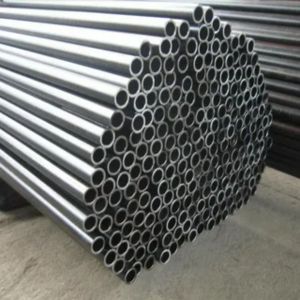

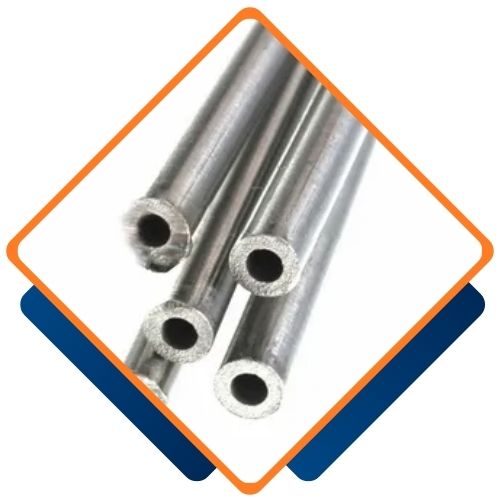

Aman Pipes and Tubes, India-based, is a renowned manufacturer and supplier of high-quality Nickel Alloy Welded Tubing. Dedicated to quality and customer satisfaction, Aman Pipes and Tubes provides tubing solutions that are the best in the industry for strength, resistance to corrosion, and accuracy. Developed to function in harsh conditions, these welded tubes are produced using high-end technology and rigorous quality control measures. Meets different industrial requirements, Aman Pipes and Tubes delivers on time, at competitive prices, with continuous service, and henceforth becomes a customer’s choice for Nickel Alloy Welded Tubing in India and overseas.
Nickel Alloy Welded Tubing is made up of nickel, with some proportion of chromium, molybdenum, iron, and copper, varying based on the grade. These alloys exhibit excellent corrosion resistance in both acidic and alkaline conditions. Mechanically, the tubing possesses high tensile strength, excellent ductility, and outstanding thermal stability. It maintains toughness and strength at high temperatures, qualifying it for high-stress applications. The tubing is also characterized by good weldability as well as resistance to oxidation and scaling.
| Thickness | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Type | Seamless / ERW / Welded / Fabricated / CDW |

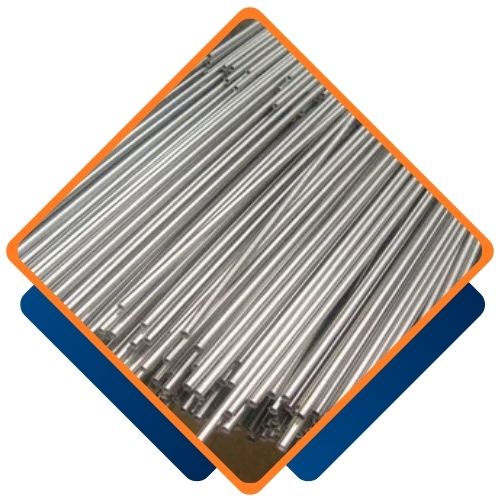

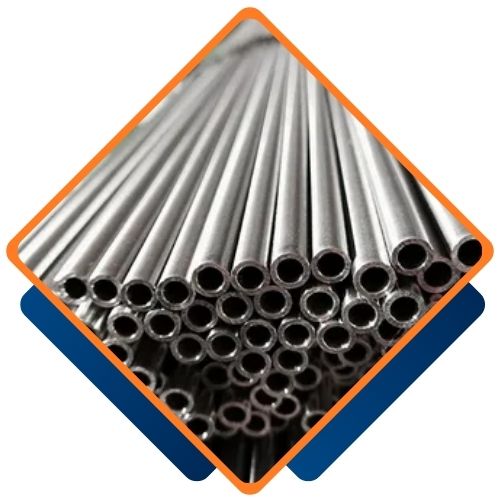

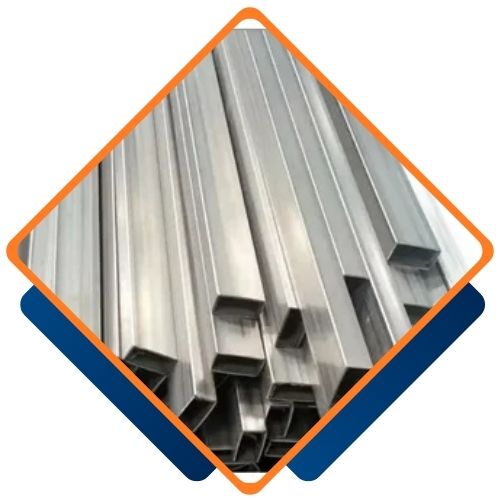

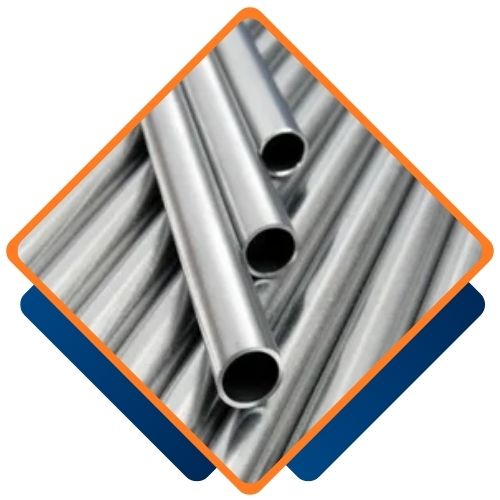

| Form | Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Beveled End, Treaded. |
| Nickel Alloy Tubes | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
|---|---|---|---|---|---|---|---|---|---|---|
| Alloy 200 Tube | 99.0 min | 0.15 max | – | 0.35 max | 0.1 max | 0.4 max | – | 0.01 max | 0.25 max | – |
| Alloy 201 Tube | Balance | 0.15 max | – | 0.35 max | 0.35 max | 0.40 max | – | 0.01 max | 0.25 max | – |
| Nickel Based Alloys | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| Alloy 200/ 201 Tube | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Nickel Alloy Welded Tubing from Aman Pipes and Tubes ensures high quality and durability, as this tubing offers excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in nickel alloy products ensures you receive a top-tier solution tailored to your needs.
Aman Pipes and Tubes, one of the largest suppliers of Nickel Alloy Welded Tubing in Hyderabad, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Our extensive inventory and commitment to exceptional service make us the go-to choice for nickel alloy products in the region.
| Wall Thickness (WT) | Nickel Tube Size Chart ( O.D.) |
|---|---|
| .010 | 1/16″ , 1/8″ , 3/16″ |
| .020 | 1/16″ , 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″ , 3/16″ |
| .028 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 3/4″ , 1″ , 1 1/2″ , 2″ |
| .035 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .049 | 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/8″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .065 | 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 3/4″ , 2″ , 2 1/2″ , 3″ |
| .083 | 1/4″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 7/8″ , 2″ , 2 1/2″ ,3″ |
| .095 | 1/2″ , 5/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .109 | 1/2″ , 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .120 | 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/4″ , 2 1/2″ , 3″ |
| .125 | 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 3″ , 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Nickel Alloy Welded Tubing to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.
Nickel Alloy Welded Tubing finds widespread application in chemical processing, aerospace, marine, and nuclear fields because of its superior resistance to corrosion and heat. It is most widely used in heat exchangers, condensers, pressure vessels, and boilers where performance under severe conditions is crucial. The tubing is also applicable for use in instrumentation systems, oil and gas exploration, and pharmaceutical plants. Its robustness to harsh and fluctuating environments qualifies it for use in critical applications where reliability and durability are its main considerations.
