Monel 400 Tubing

Home > Monel > Monel 400 Tubing

Monel 400 Tubing Manufacturer, Supplier and Exporter in Hyderabad, India

Aman Pipes and Tubes, located in Hyderabad, India, stands out as a leading manufacturer and supplier of Monel 400 Tubing, celebrated for its top-notch quality and dependability. The company specializes in high-strength, corrosion-resistant alloys, offering Monel 400 Tubing that can endure tough environments, including seawater and acidic conditions. With cutting-edge manufacturing techniques and rigorous quality checks, Aman Pipes and Tubes delivers seamless tubing solutions that align with global standards. Catering to sectors like marine, chemical processing, aerospace, and oil & gas, the company is dedicated to providing robust and efficient tubing products designed for challenging applications around the globe.

Monel UNS N04400 Tube Exporter in India, Monel 400 Tubing Hyderabad, Monel Alloy 400 Tubing Price list in Hyderabad, Monel DIN NR. 2.4360 Tubing Suppliers in India, Monel Alloy 400 Tubes Manufacturer in Hyderabad , Monel 400 Tube Dealer in Hyderabad, Monel DIN NR. 2.4360 Tubes Supplier in Hyderabad, Monel Alloy 400 Tubes Distributor in India, Monel 400 Tube Suppliers India

Monel 400 Tubing is made up of 63–70% Nickel and 28–34% Copper, along with trace amounts of Iron, Manganese, Carbon, and Silicon. This unique blend gives it remarkable corrosion resistance, particularly in seawater and chemical settings. On the mechanical side, Monel 400 Tubing boasts a tensile strength between 480 and 620 MPa, yield strength ranging from 170 to 275 MPa, and an elongation of about 35–45%. It showcases exceptional toughness, ductility, and resistance to stress corrosion cracking. Plus, it maintains its mechanical stability over a broad temperature range, making it perfect for high-pressure and corrosive service conditions.

Monel 400 Tubing Specification

ASTM/ ASME Specification	Standard Specification for Monel 400 Seamless & Welded Superheater, Condenser, Hydraulic, Boiler and Heat-Exchanger Tubes
Shapes	ASME SB 163 UNS N04400 Round, Rectangular, Square, Hydraulic, Straight, “U” Shape, Coiled, Honed Tubes, Pan Cake Coils
Manufacturing Type	Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded
Thickness Range	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS
Swg & Bwg	10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Standard	SUS, JIS, AISI, ASTM, GB, DIN, EN
Delivery Condition	Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF
Value Added Services	Cutting Beveling Threading Draw & Expansion as per required Size & Length Ultrasonic Testing Annealed & Pickled Bending Destructive and Non Destructive
END	Plain End, Beveled End, Treaded ASTM B163 Alloy 400 Tube
Processing Service	Bending, Welding, Decoiling, Punching, Cutting, Moulding
Technique	400 Monel Cold drawn, Cold rolled, Hot rolled, Extrusion Tube
Marking	Specification Material Grade Nominal Size Schedule or Wall Thickness Method of Manufacturing (Seamless / Welded) Heat Number Supplier / Manufacturer’s Name or Custom Logo – on request Marked Sample: ASTM B163 UNS N04400 Seamless 113.60 mm OD x 6 mm W.T. HEAT No. xxxxxx
Test Certificate	DFARS compliant EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC) HS Code Commercial Invoice Raw Materials Certificate Moisture testing Fumigation Certificates 100% Radiography Test Report Heat Treatment Charts Third Party Inspection Report Surface roughness measurement Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab Form A for Generalized System of Preferences (GSP)
Alloy 400 Tubing Packaging	Packed in PE Fabric Bundles or ply wooden box wrapped in plastic or Standard seaworthy export packing or as per customers’ request

Monel Alloy 400 Tubing Chemical Composition

ALLOY	C	Mn	Si	S	Cu	Fe	Ni	Cr
Monel 400	0.30 max	2.00 max	0.50 max	0.24max	28.0-34.0	2.50 max	63.00 min	–

400 Monel Tubing Mechanical Properties

Element	Density	Melting Range	Tensile Stress	Yield Stress (0.2%Offset)	Elongation
Monel 400	8.8 g/cm3	1350 °C (2460 °F)	Psi – 80,000 , MPa – 550	Psi – 35,000 , MPa – 240	40 %

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Monel DIN NR. 2.4360 Tube Supplier in Hyderabad, Alloy 400 Tube Exporter in Hyderabad , Monel 400 Tube Stockist in Hyderabad, Monel Alloy 400 Tubes Manufacturer in Hyderabad, ASME SB 163 UNS N04400 Tube Suppliers in Hyderabad, Monel 400 Tubing Exporter in India, Monel 400 Tubing Price Per Kg, Monel DIN NR. 2.4360 Tubes Suppliers Hyderabad s

Why Choose Monel 400 Tubing from Aman Pipes and Tubes?

Choosing Monel 400 Tubing from Aman Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our tubing is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Monel 400 Tubing Supplier in Hyderabad, India

Aman Pipes and Tubes, one of the largest suppliers of Monel 400 Tubing in Hyderabad, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for monel products in the region.

Monel UNS N04400 Equivalent

GRADE	WERKSTOFF NR. / DIN	UNS	JIS	BS	GOST	AFNOR	EN
Monel 400	2.4360	N04400	NW 4400	NA 13	МНЖМц 28-2,5-1,5	NU-30M	NiCu30Fe

Monel UNS N04400 Tube Supplier in Hyderabad, Monel Alloy 400 Tubes Exporter in India, Monel Alloy 400 Tubes Manufacturer in Hyderabad , Monel DIN NR. 2.4360 Tube Price List in Hyderabad, 400 Monel Tube Distributor in Hyderabad, Monel 400 Tube in India, Monel UNS N04400 Tube Supplier in Hyderabad , Monel 400 Tube Distributor in India, Monel 400 Tubing Sizes in mm

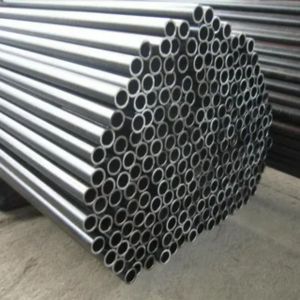

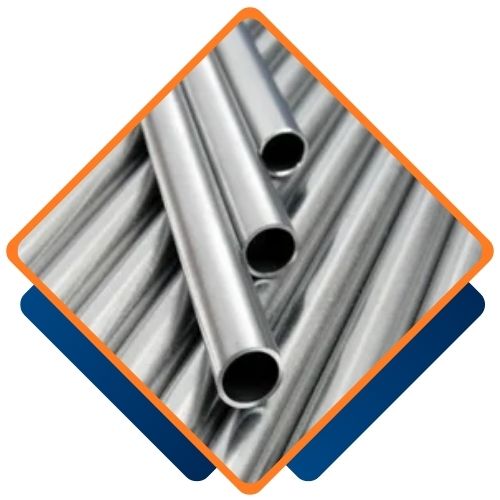

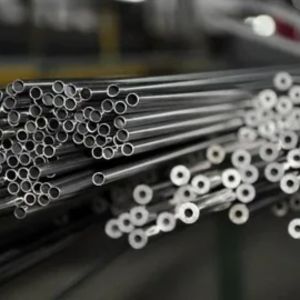

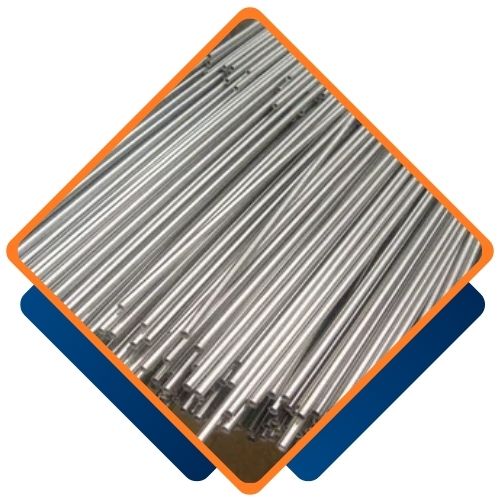

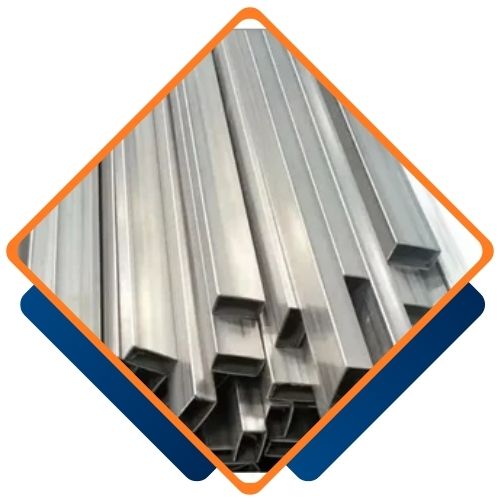

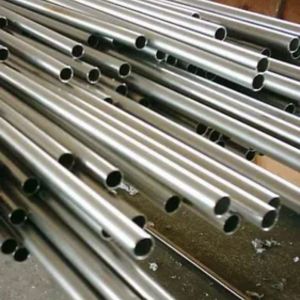

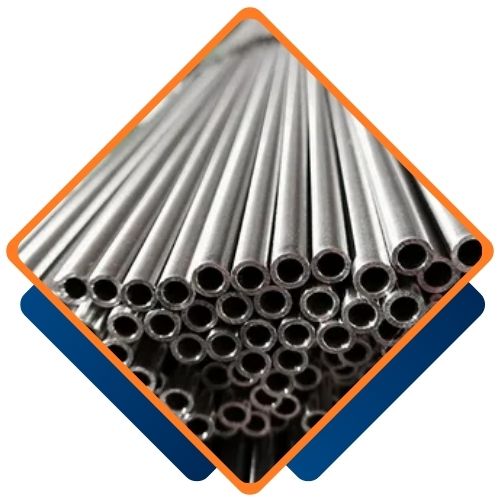

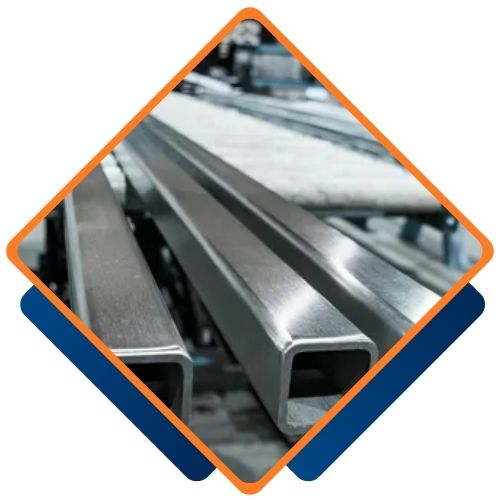

Types of Monel 400 Tubing

Are Custom Sizes Available for Monel 400 Tubing?

Yes, we offer custom sizes for Monel 400 Tubing to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.

Monel 400 Tubes Exporter in India, Monel 400 Tubing Price List in Hyderabad, Alloy 400 Tubing Supplier in India, 400 Monel Tube Exporter in Hyderabad , Monel 400 Tubing Exporter in Hyderabad, Monel 400 Tube Size Chart, Monel Alloy 400 Tubing Price in India, Monel DIN NR. 2.4360 Tube Weight Chart, Monel 400 Tubing Thickness, ASME SB 163 UNS N04400 Tube Supplier in Hyderabad, 400 Monel Tubing Stockist in India

Monel 400 Tubing Uses

Monel 400 Tubing is a go-to choice for applications that require impressive corrosion resistance and mechanical strength. It’s widely used in marine settings for seawater piping, pump shafts, and valves, thanks to its ability to resist saltwater corrosion. In the chemical industry, it’s essential for managing acids, alkalis, and other harsh chemicals in heat exchangers and process equipment. The aerospace industry also relies on Monel 400 tubing for fuel lines, hydraulic systems, and structural components. Additionally, it plays a vital role in oil and gas exploration, nuclear reactors, and more.
