Home > Incoloy > Incoloy Tubing
High-performance tubing solutions for demanding environments are provided by Aman Pipes and Tubes, a reputable manufacturer and supplier of Incoloy tubing in Hyderabad, India. The nickel-iron-chromium alloy Incoloy is well-known for its exceptional resistance to oxidation, carburisation, high temperatures, and a variety of corrosive substances. Heat exchangers, chemical processing, nuclear power plants, and marine systems all make extensive use of common grades such as Incoloy 800, 800H, 800HT, and 825. Our seamless, welded, and cold-drawn Incoloy tubing is produced in accordance with international standards like ASTM B407 and B423. For vital industrial applications, Aman Pipes and Tubes provides precisely engineered tubing.
Depending on the grade, incoloy tubing may include molybdenum, copper, titanium, and aluminium in addition to the usual 30–46% nickel, 19–23% chromium, and balanced iron. In addition to having outstanding creep resistance and thermal stability, it has high tensile strength (up to 750 MPa) and yield strength (up to 400 MPa). It is perfect for high-pressure and high-temperature service because of these characteristics. For every length of tubing, Aman Pipes and Tubes guarantees dimensional accuracy, superior surface finish, and metallurgical integrity, which qualifies it for demanding operating conditions and vital thermal systems.
| Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
|---|---|
| Incoloy Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |

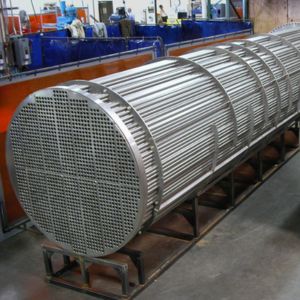

| Specialize in | Incoloy Capillary Tube & Other Odd Size Incoloy Heat Exchanger & Condenser Tubes |
| Incoloy tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Incoloy Alloy tube Length | Single Random, Double Random, Standard & Cut length |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Incoloy Alloy Tube Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |

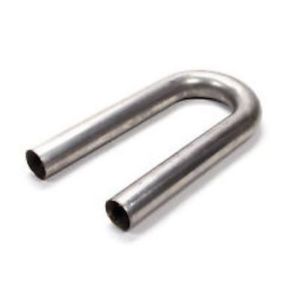

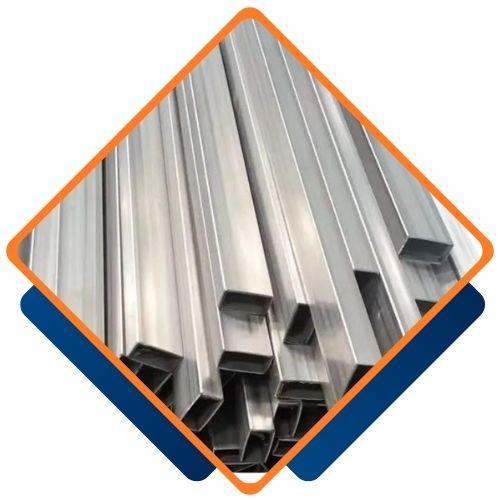

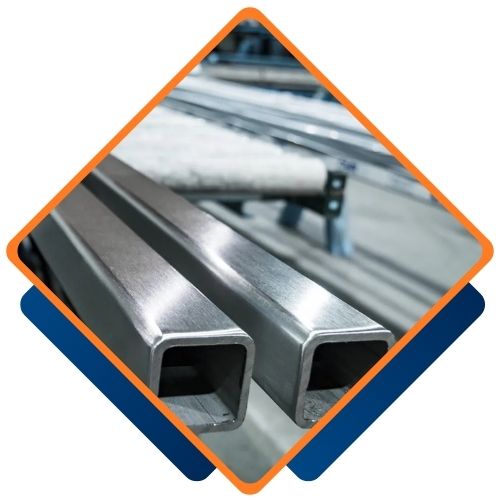

| Incoloy tube Form | Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc. |
| Incoloy Welded Tube Size | 6.35 mm OD To 152 mm OD |
| End | Plain End, Beveled End, Treaded |
| Incoloy Tube Standards | ASTM B163, B516 / ASME SB163, ASME SB516 |
| Marking | All Incoloy Alloy tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Incoloy Tube Type | Seamless, ERW, EFW, Welded, Fabricated |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″ , 1/8″ , 3/16″ |
| .020 | 1/16″ , 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″ , 3/16″ |
| .028 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 3/4″ , 1″ , 1 1/2″ , 2″ |
| .035 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .049 | 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/8″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .065 | 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 3/4″ , 2″ , 2 1/2″ , 3″ |
| .083 | 1/4″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 7/8″ , 2″ , 2 1/2″ ,3″ |
| .095 | 1/2″ , 5/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .109 | 1/2″ , 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .120 | 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/4″ , 2 1/2″ , 3″ |
| .125 | 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 3″ , 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
| Element | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Incoloy Tubes from Aman Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Incoloy solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Aman Pipes and Tubes, one of the largest suppliers of Incoloy Tubing in the Hyderabads, India. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Incoloy products in the region, delivering reliable solutions to meet diverse project requirements.
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Yes, we provide custom sizes for Incoloy Tubes to meet your specific requirements. At Aman Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@amanpipesandtubes.co.in.
Incoloy tubing finds extensive use in nuclear reactors, heat exchanger systems, marine engineering, chemical and petrochemical plants, and power generation. It is perfect for transporting seawater, phosphoric acid, and sulphuric acid due to its high resistance to oxidising and acidic environments. It is frequently used in parts for furnaces, condensers, heaters, and re-heating coils where corrosion resistance and high mechanical strength are essential. To meet the unique requirements of industries that require dependable performance under severe thermal and chemical stress, Aman Pipes and Tubes provides Incoloy tubing in a range of sizes, lengths, and thicknesses.
