Home > Incoloy > Incoloy 800/800H/800HT Tubing
Hyderabad-based Aman Pipes and Tubes is a well-known manufacturer and supplier of Incoloy 800/800H/800HT Tubing, providing high-performance alloy tubing solutions to various industry segments. Renowned for their quality and customer-centric approach, Aman Pipes and Tubes provides tubing that adheres to rigorous international standards and rigorous operating conditions. With state–of-the-art infrastructure and an efficient team of experts, the company provides precision-engineered products for use in high-temperature and corrosive conditions. Their Incoloy 800 series tube is commonly used in heat exchangers, nuclear facilities, and petrochemical processing facilities due to its high level of reliability and durability.
Incoloy 800/800H/800HT Tube is composed mainly of nickel (30–35%), iron (39.5% min), and chromium (19–23%), with minimal additions of carbon, aluminum, and titanium. The 800H and 800HT alloys possess improved creep and rupture resistance owing to controlled aluminum-titanium content and carbon. The alloys exhibit superior oxidation and carburization resistance at elevated temperatures. The mechanical properties are generally tensile strength of 450–600 MPa, yield strength of about 200–275 MPa, and elongation of 30–45%, which favor them under severe service conditions.
Specifications ASTM B407, B514, B515 / ASME SB407, SB514, SB515
Dimensions ASTM, ASME and API
Size Range 15″NB – 150″NB
Outer Diameter 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Schedule SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Length Single Random, Double Random & Cut Length

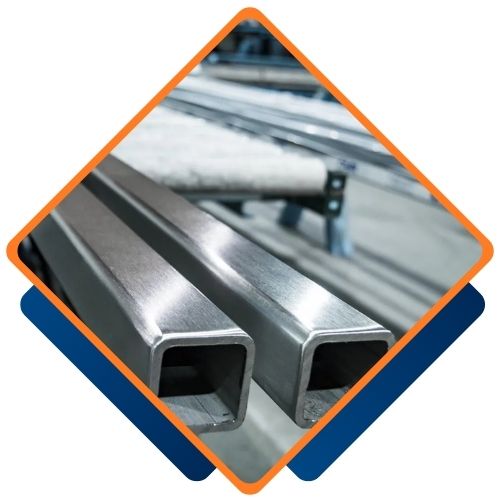

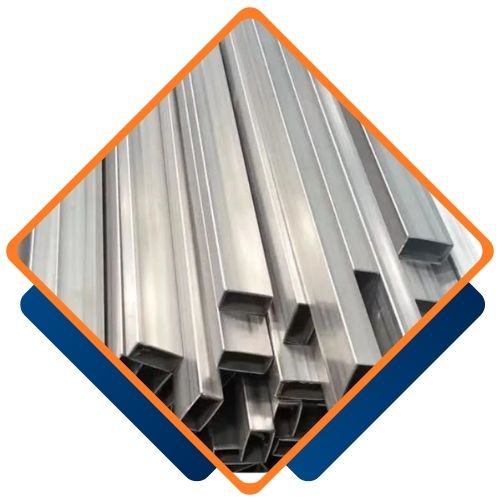

Form Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tube
Grade 800 / 800H / 800HT UNS (N08800, N08810, N08811), DIN (1.4876, 1.4958, 1.4959)
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800 | N08800 | 1.4876 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800 | NA 15 | ЭИ670 | XH32T |
| Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |
| Incoloy 800HT | N08811 | 1.4959 | – | X8NiCrAlTi32-21 | NCF 800HT | NA 15(HT) | ЭИ670 | XH32T |
| Element | Alloy 800 | Alloy 800H | Alloy 800HT |
| C | 0.10 max | 0.05 – 0.10 | 0.06 – 0.10 |
| Mn | 1.50 max | 1.50 max | 1.50 max |
| Si | 1.00 max | 1.00 max | 1.00 max |
| S | 0.015 max | 0.015 max | 0.015 max |
| Cu | 0.75 max | 0.75 max | 0.75 max |
| Fe | 39.50 min | 39.50 min | 39.50 min |
| Ni | 30.00 – 35.00 | 30.00 – 35.00 | 30.00 – 35.00 |
| Cr | 19.00 – 23.00 | 19.00 – 23.00 | 19.00 – 23.00 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Incoloy 800/800H/800HT Tubes from Aman Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Incoloy solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Aman Pipes and Tubes, one of the largest suppliers of Incoloy 800/800H/800HT Tubing in the Hyderabads, India. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Incoloy products in the region, delivering reliable solutions to meet diverse project requirements.
| Element | Incoloy Alloy 800/800H/800HT |
| Density | 7.94 g/cm3 |
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength | Psi – 75,000 , MPa – 520 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa – 205 |
| Elongation | 30 % |
Yes, we provide custom sizes for Incoloy 800/800H/800HT Tubes to meet your specific requirements. At Aman Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@amanpipesandtubes.co.in.
Incoloy 800/800H/800HT Tubing is extensively used in high-temperature and high-stress environments, particularly in industries such as petrochemical, power generation, heat treatment, and nuclear engineering. It is ideal for furnace components, heat exchangers, superheaters, and boiler tubing due to its ability to retain strength and resist scaling at elevated temperatures. These alloys perform reliably in environments where other materials fail due to oxidation or carburization. Their thermal cycling resistance and stability qualify them for uses in constant thermal stress and corrosive gas applications.
