Incoloy 800/800H/800HT Pipes Supplier and Exporter in Hyderabad, India

Aman Pipes and Tubes, a reputable manufacturer and supplier based in Hyderabad, India, specializes in high-performance Incoloy 800, 800H, and 800HT Pipes. These pipes are crafted for exceptional strength and stability, especially in high-temperature settings. Made from a nickel-iron-chromium alloy, they’re perfect for demanding structural applications like heat exchangers, furnace components, and petrochemical processing. The 800 series alloys vary mainly in carbon content and heat treatment, which enhances their creep and rupture strength. Aman provides these pipes in both seamless and welded forms, adhering to international standards to ensure long-lasting reliability in thermal, corrosive, and high-pressure environments across the power, chemical, and refinery sectors.

Incoloy 800 Pipe Supplier in Hyderabad, Incoloy 800HT Pipe Exporter in Hyderabad , ASTM B407 Incoloy 800H Pipe Stockist in Hyderabad, UNS N08800 Incoloy 800 Pipe Manufacturer in Hyderabad, Incoloy 800HT Pipe Suppliers in Hyderabad, Incoloy 800HT Pipe Exporter in India, DIN 1.4876 Incoloy 800 Pipe Price Per Kg

Incoloy 800/800H/800HT Pipes are composed of about 30–35% Nickel, 19–23% Chromium, with Iron making up the rest. The 800H and 800HT versions feature a higher carbon content (0.05–0.10%) along with aluminum and titanium, boosting their high-temperature strength. Their typical mechanical properties include a tensile strength of around 500–650 MPa and a yield strength of about 200–275 MPa, along with impressive resistance to oxidation, carburization, and sulfidation at temperatures reaching up to 1100°C. These alloys maintain excellent structural integrity even under thermal cycling, making them suitable for pressure vessels, reformers, and piping systems in harsh heat and chemical environments.

Incoloy 800/800H/800HT Pipes Specification

Alloy 800 Pipe Specification	ASTM B 167 ASME SB 167 / ASTM B 829 ASME SB 829 / ASTM B 517 ASME SB 517
Incoloy Alloy 800 Pipe Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Our Presence	USA, Canada, Australia, India, Malaysia, Poland, Iran, Italy, Singapore, UAE
Incoloy 800 Welded Pipe size	5.0 mm – 1219.2 mm
Alloy 800 EFW Pipe size	5.0 mm – 1219.2 mm
Specialized in	Large Diameter Alloy 800 Pipe
Incoloy 800 Pipe Form	Hollow, Square, Round, Rectangular , Straight Pipes, Hydraulic Etc.
Alloy 800 Pipe End	Plain End, Beveled End, Treaded.
Incoloy 800 Pipe Length	Single Random, Double Random & Cut Length.
Alloy 800 Seamless Pipe size	4 to 219mm W. T.: 0.5 to 20mm
Marking	All Incoloy Alloy 800 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Manufacturers of Incoloy 800 Pipe	Alloy 800 Pipe make Sumitomo Metals, Japan Alloy 800 Pipe make Tubacex Tubos Inoxidables S.A., Spain Incoloy 800 Seamless Pipe make Seah Steel Corporation, Korea Incoloy 800 Pipe make Sanyo Special Steel, Japan Incoloy 800 Pipe make Nippon Steel Corporation, Japan Incoloy Alloy 800 Pipe make Kobe Special Tube, Japan Incoloy Alloy 800 Pipe make Schoeller Bleckmann, Austria
Incoloy 800 Pipe Schedule	SCH5, SCH10, SCH40, STD, SCH80, SCH160
Material Test Certificates (MTC)	Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
Test	Hardness Test Flattening Test Pitting Resistance Test Chemical Analysis – Spectro Analysis Micro and MacroTest Flaring Test Intergranular Corrosion (IGC) Test Mechanical Testing Such as Tensile of Area Positive Material Identification – PMI Testing
Origin	European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material)

Incoloy 800/800H/800HT Pipes Chemical Composition

Grade		C	Mn	Si	Fe	S	Cr	Al-Ti	Ni
Incoloy 800 Pipe	min.	–	–	–	39.5	–	19.0	0.15	30.0
Incoloy 800 Pipe	max.	0.1	1.5	1.0	–	0.015	23.0	0.60	35.0
Incoloy 800H Pipe	min.	0.05	–	–	39.5	–	19.0	0.15	30.0
Incoloy 800H Pipe	max.	0.1	1.5	1.0	–	0.015	23.0	0.60	35.0
Incoloy 800HT Pipe	min.	0.06	–	–	39.5	–	19.0	0.85/0.25	30.0
Incoloy 800HT Pipe	max.	0.1	1.5	1.0	–	0.015	23.0	1.20/0.60	35.0

Incoloy 800/800H/800HT Pipes Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
800-H-HT	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa –205	30	–	–

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Incoloy 800 Pipe Exporter in India, Incoloy 800H Pipe Hyderabad, ASTM B407 Incoloy 800HT Pipe Price list in Hyderabad, Alloy Pipes Suppliers in India, Incoloy 800 Pipe Manufacturer in Hyderabad , UNS N08810 Incoloy 800H Pipe Dealer in Hyderabad, Incoloy 800HT Pipe Supplier in Hyderabad, DIN 1.4876 Incoloy 800 Pipe Distributor in India

Why Choose Incoloy 800/800H/800HT Pipes from Aman Pipes and Tubes?

Choosing Incoloy 800/800H/800HT Pipes from Aman Pipes and Tubes ensures superior corrosion resistance, excellent thermal conductivity, high strength, and long-lasting performance. Our commitment to quality and precision makes our pipes and tubing ideal for demanding industrial applications.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Incoloy 800/800H/800HT Pipes Supplier in Hyderabad, India

Aman Pipes and Tubes is the largest supplier of Incoloy 800/800H/800HT Pipes in Hyderabad, India. We offer premium-quality, corrosion-resistant pipes and tubing ideal for marine, chemical, and industrial applications, with our reliable delivery and customized solutions to meet diverse client needs.

Incoloy 800H Pipe Supplier in Hyderabad, Incoloy 800 Pipe Exporter in India, Incoloy 800H Pipe Manufacturer in Hyderabad , Incoloy 800HT Pipe Price List in Hyderabad, Incoloy 800 Pipe Distributor in Hyderabad, Incoloy 800HT Pipe in India, Incoloy 800H Pipe Supplier in Hyderabad , Incoloy 800H Pipe Distributor in India, Incoloy Pipe 800Sizes in mm

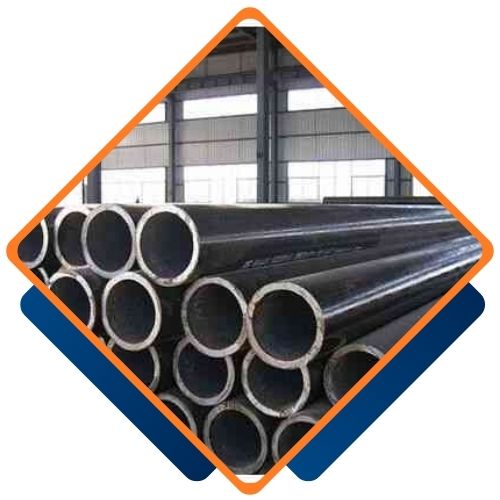

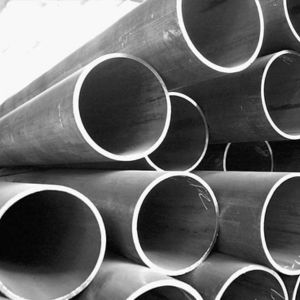

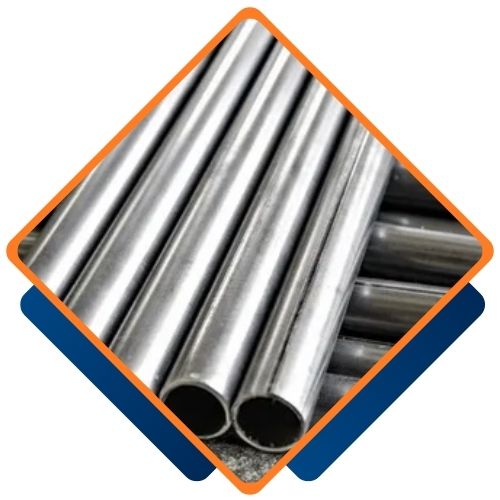

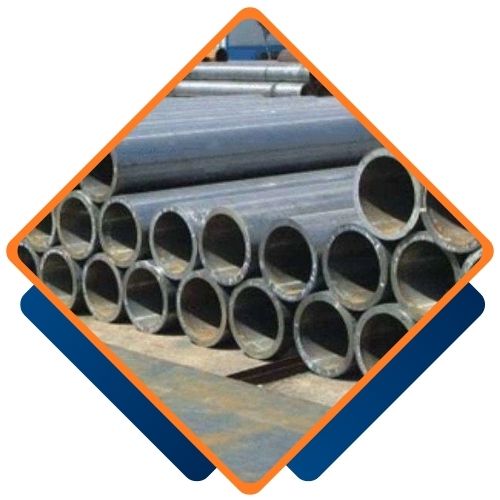

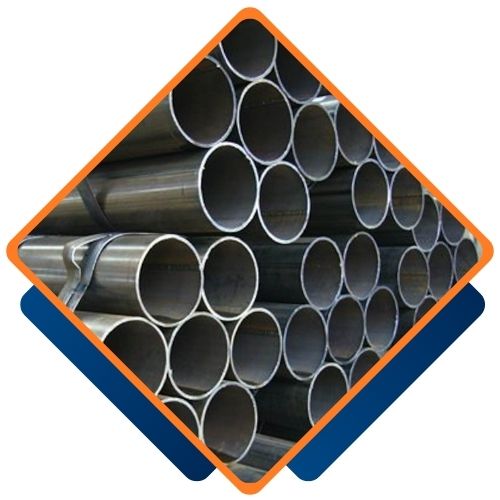

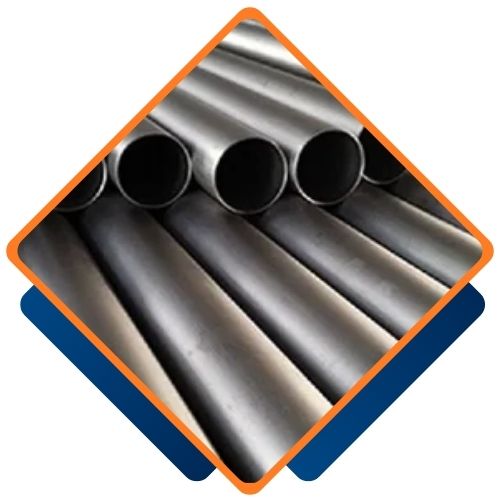

Types of Incoloy 800/800H/800HT Pipes

Are Custom Sizes Available for Incoloy Pipe ?

Yes, custom sizes are available for Incoloy 800/800H/800HT Pipes to meet specific requirements. These pipes can be tailored for various industrial applications. For more details, contact us at sales@amanpipesandtubes.co.in.

Incoloy 800 Pipe Exporter in India, Incoloy 800H Pipe Price List in Hyderabad, ASTM B407 Incoloy 800HT Pipe Supplier in India, Incoloy 800 Pipe Exporter in Hyderabad , Incoloy 800H Pipe Exporter in Hyderabad, Alloy Pipe Sizes in mm, Incoloy 800HT Pipes Price in India, Incoloy 800 Pipe Weight Chart, UNS N08811 Incoloy 800H Pipe Thickness, DIN 1.4876 Incoloy 800HT Pipe Supplier in Hyderabad, Incoloy 800 Pipe Stockist in India

Incoloy 800/800H/800HT Pipes are extensively utilized in high-temperature and corrosive settings. They play a crucial role in applications such as heat exchangers, hydrocarbon cracking units, power plant superheaters, steam generators, and furnace components. In the petrochemical and chemical processing industries, these pipes effectively manage nitric and organic acids, ammonia, and chloride-bearing solutions. They are particularly well-suited for piping in nuclear power plants and equipment that undergoes thermal cycling or stress rupture. Their stability and metallurgical resistance at elevated temperatures make them a top choice for demanding applications.
