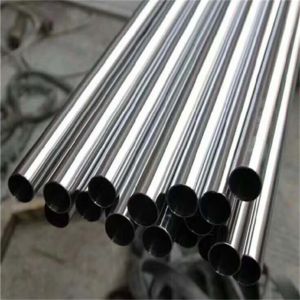

Aman Pipes and Tubes, a reputable manufacturer and supplier based in Hyderabad, India, is dedicated to providing top-notch Hastelloy C22 Pipes for essential industrial applications. Renowned for its outstanding resistance to corrosion, particularly in harsh environments, Hastelloy C22 is the go-to choice for the chemical processing and marine industries. Aman Pipes and Tubes prides itself on precision manufacturing, adherence to international standards, and thorough quality testing. With a strong focus on customer satisfaction and robust supply capabilities, the company serves various industries across India and around the world, delivering dependable piping solutions for challenging environments like chemical plants, power stations, and offshore facilities.
Hastelloy C22 Pipes are made up of nickel (at least 56%), chromium (20–22.5%), molybdenum (12.5–14.5%), iron (2–6%), and cobalt (up to 2.5%), along with small amounts of tungsten and vanadium. This unique blend offers exceptional resistance to both oxidizing and reducing agents. In terms of mechanical properties, C22 showcases impressive performance with a tensile strength of about 690 MPa, a yield strength of 283 MPa, and an elongation of 45%, depending on how it’s processed. It holds up well under extreme environmental stress, making it perfect for high-pressure, high-temperature, and corrosive industrial settings.
| Specifications | ASTM B 622 ASME SB 622 / ASTM B 619 ASME SB 619 |
| Dimensions | ASME, ASTM, and API |
| Size | 15″NB upto 150″NB IN |
| Specialized in | Sizes in Large Diameter |
| Schedule | Schedule 5, 10, 40, STD, 80, 160 |
| Type | ERW / Seamless / Welded / LSAW Pipes / Fabricated |
| Form | Hydraulic, Round, Etc |
| Length | Double Random, Single Random, & Cut Length. |
| End | Beveled End, Plain End, Treaded |
| Hastelloy C22 | Fe | Ni | P | C | Co | Mo | Si | Mn | S | Cr |
| 4 – 7 | Balance | 0.04 max | 0.01 max | 2.5 max | 15 – 17 | 0.08 max | 1.0 max | 0.03 max | 14.5 – 16.5 |
| Density | Yield Properties (0.2%Offset) | Melting Point | Elongational | Tensile Properties |
| 8.89 g/cm3 | Psi – 52,000 , MPa – 355 | 1370 °C (2500 °F) | 40 % | Psi – 1,15,000 , MPa – 790 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Hastelloy C22 Pipes from Aman Pipes and Tubes for their exceptional corrosion resistance, high strength, and durability. These pipes are ideal for marine, chemical, and offshore applications, offering long-lasting performance and superior reliability.
Aman Pipes and Tubes is the largest supplier of Hastelloy C22 Pipes in Hyderabad, India, providing top-quality, corrosion-resistant pipes and tubing ideal for marine, industrial, and chemical applications, with reliable delivery and excellent customer service.
| STANDARD | WERKSTOFF NR. | UNS | OR | EN | GOST | JIS |
| Hastelloy C22 | 2.4819 | N10276 | ЭП760 | NiMo16Cr15W | ХН65МВУ | NW 0276 |
Yes, custom sizes are available for Hastelloy C22 Pipes to meet specific project requirements. These pipes can be tailored for various industrial applications. For more details, contact us at sales@amanpipesandtubes.co.in.
| ASTM B622 Hastelloy C22 Pipe OD mm | Pipe WT mm | in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Hastelloy C22 Pipes find their place in industries that require outstanding corrosion resistance and mechanical strength. They’re perfect for chemical processing, pharmaceutical manufacturing, and pollution control systems, where they often encounter strong oxidizers, chlorides, and acidic substances. These pipes are also widely used in nuclear fuel reprocessing, marine engineering, and waste treatment facilities. In offshore oil and gas platforms, C22 pipes guarantee long-lasting performance even in saline and acidic environments. Their durability and non-reactive properties also make them an excellent choice for food processing applications.
