Home > Duplex Steel > Duplex Steel Tubing S32205
Aman Pipes and Tubes, a prominent supplier and manufacturer located in Hyderabad, India, specializes in high-quality Duplex Steel S32205 Tubing. This tubing is crafted for exceptional corrosion resistance, impressive strength, and a long-lasting service life. As part of the duplex stainless steel family, it features a blend of austenitic and ferritic microstructures, which provide remarkable mechanical properties and outstanding resistance to stress corrosion cracking, pitting, and crevice corrosion. Perfect for demanding sectors like oil & gas, marine, chemical, and desalination, Aman offers these tubes in various forms and sizes, ensuring they meet international standards such as ASTM A789/A790.
Duplex Steel UNS S32205 Tubing is made up of about 22% Chromium, 5–6.5% Nickel, 3% Molybdenum, and Nitrogen, with Iron making up the rest. This unique composition gives it exceptional resistance to chloride-induced corrosion and a fantastic strength-to-weight ratio. Typical mechanical properties include a yield strength of at least 450 MPa, tensile strength of at least 620 MPa, and an elongation of around 25%. The duplex structure allows it to excel in high-pressure, high-stress environments while still being easy to weld and shape. These tubes maintain their strength across a wide temperature range, making them suitable for both low- and high-temperature applications.
| Specifications | ASTM A790 / ASME SA790, ASTM A789 / ASME SA A789 |
| Standard | ASTM, ASME and API |
| Seamless Pipes & Tubes Sizes | 1 / 2″ NB – 8″ NB |
| Welded Pipes & Tubes Sizes | 6″ NB – 24″ NB |
| Outer Diameter | 6.0-630mm |
| Thickness | 0.3mm – 50 mm |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Types | Seamless / EFW / Fabricated |
| Length | Single Random, Double Random & Required Length |

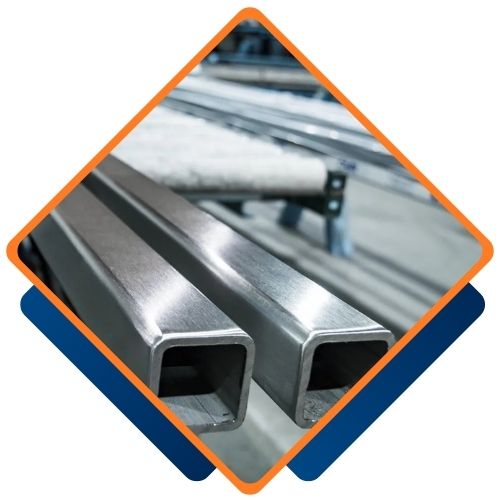

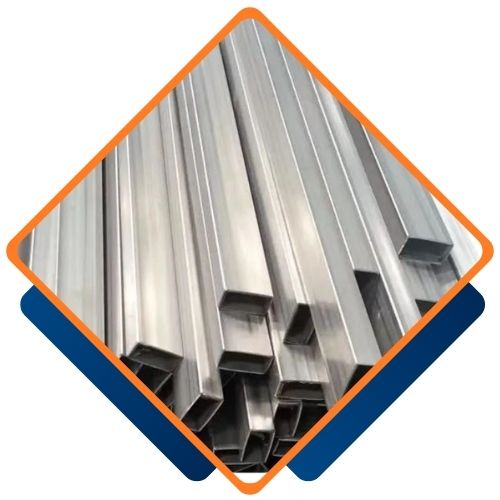

| Form | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| End | Plain End, Beveled End, Treaded |
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Duplex S32205 | S32205 | 1.4462 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Duplex 2205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min | |
| Grade | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) | |
|---|---|---|---|---|---|
| Duplex Steel UNS S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Duplex Steel Tubing S32205 from Aman Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Duplex steel solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Aman Pipes and Tubes, one of the largest suppliers of Duplex Steel Tubing S32205 in the Hyderabads, India. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Duplex steel products in the region, delivering reliable solutions to meet diverse project requirements.
Yes, we provide custom sizes for Duplex Steel Tubing S32205 to meet your specific requirements. At Aman Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@amanpipesandtubes.co.in.
Duplex Steel S32205 Tubing is extensively utilized in industries that demand a blend of high mechanical strength and superior corrosion resistance. In the oil and gas industry, it’s commonly found in subsea and offshore platforms, heat exchangers, and chemical injection lines. In the chemical and petrochemical sectors, it’s ideal for pressure vessels, piping, and scrubbers. This tubing is also perfect for desalination plants, marine applications, and wastewater treatment systems due to its excellent resistance to chlorides and seawater. Its durability and resistance to erosion and fatigue make it a reliable choice for various challenging environments.
