Home > Copper Nickel > Copper Nickel Welded Tubing

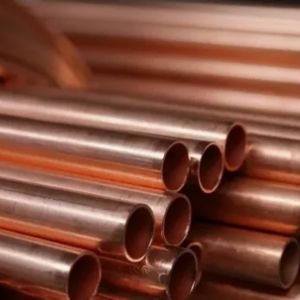

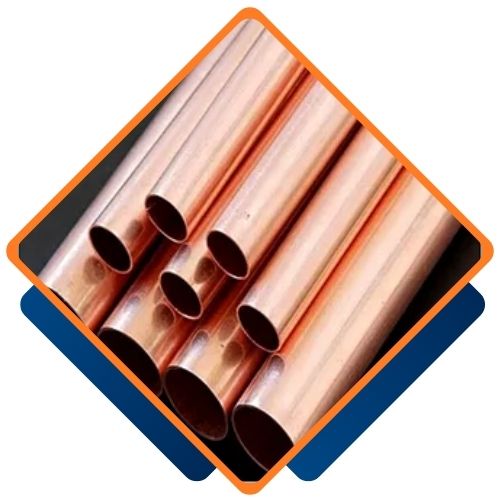

With its headquarters in Hyderabad, India, Aman Pipes and Tubes is a top producer and supplier of copper nickel welded tubing, providing excellent solutions for environments that are prone to corrosion and high moisture content. Made with premium Cu-Ni alloys and precision welding, these tubes offer exceptional corrosion resistance, long-lasting durability, and dependable performance in industrial, power, and marine applications. Aman’s Copper Nickel Welded Tubing complies with international standards and comes in a range of grades, including Cu-Ni 90/10 and 70/30. Aman provides reliable and affordable tubing solutions to support vital operations across industries, with a strong emphasis on quality, consistency, and on-time delivery.
90% copper and 10% nickel (Cu-Ni 90/10) or 70% copper and 30% nickel (Cu-Ni 70/30) make up copper nickel welded tubing. Tiny amounts of iron and manganese are added for strength and corrosion resistance. These tubes have outstanding ductility and formability, with tensile strengths ranging from 300 to 520 MPa, yield strengths between 100 and 150 MPa, and elongation above 30%. In addition to having exceptional weldability, thermal conductivity, and mechanical stability under high-temperature and high-pressure circumstances, they also demonstrate exceptional resistance to saltwater corrosion, biofouling, and erosion.
Specifications : ASTM / ASME SB 111 / 151 / 466
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Well Thickness : Between 0.15mm and 1.50 mm
Length : Single Random, Double Random & Required Length
Schedule : SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Types : Welded

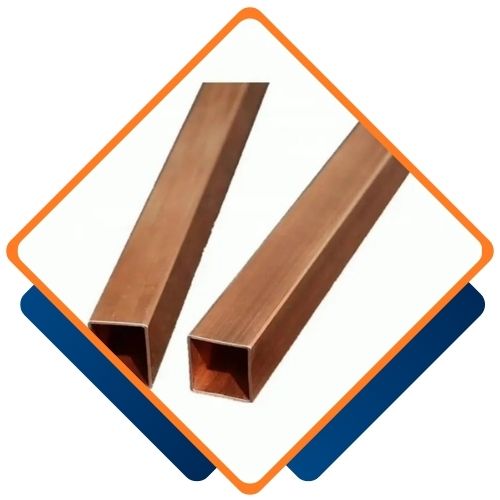

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
Grades : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
| Element | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 90-1000 psi | 30 % |
| Property |
Metric Units |
Imperial Units |
|---|---|---|
|
Melting Point (Liquidus) |
11,500°C |
21,000°F |
|
Melting Point (Solidus) |
11,000°C |
20,100°F |
|
Density |
8.94 gm/cm³ @ 20°C |
0.323 lb/in³ @ 68°F |
|
Specific Gravity |
8.94 |
8.94 |
|
Coefficient of Thermal Expansion |
17.1 x 10 -6 / °C (20-300°C) |
9.5 x 10 -5 / °F (68-392°F) |
|
Themal Conductivity |
40 W/m. °K @ 20°C |
23 BTU/ft³/ft/hr/°F @ 68°F |
|
Thermal Capacity (Specific Heat) |
380 J/kg. °K @ 20°C |
0.09 BTU/lb/°F @ 68°F |
|
Electrical Conductivity (Annealed) |
5.26 microhm?¹.cm?¹ @ 20°C |
9.1% IACS |
|
Electrical Resistivity (Annealed) |
0.190 microhm.cm @ 20°C |
130 ohms (circ mil/ft) @ 68°F |
|
Modulus of Elasticity (tension) |
140 GPa @ 20°C |
20 x 10 6 psi @ 68°F |
|
Modulus of Rigidity (torsion) |
52 GPa @ 20°C |
7.5 x 10 6 psi @ 68°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Welded Tubing from Aman Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel Welded Tubing from Aman Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Copper Nickel Welded Tubing to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.
Welding Copper and Nickel Because of its exceptional resistance to corrosion and biofouling, tubing is widely used in the marine and offshore industries for firewater networks, ballast lines, and seawater cooling systems. It is essential for heat exchangers and condenser tubing in desalination plants, shipbuilding, and power generation facilities. Corrosive fluids are transported using it in the petrochemical and chemical industries. Its long service life, ease of fabrication, and durability also make it appropriate for hydraulic lines, HVAC systems, and instrumentation, guaranteeing safe and effective operation in settings subjected to aggressive chemicals, pressure, and moisture.
