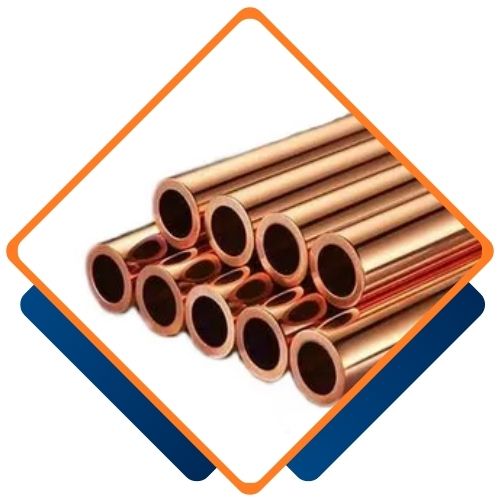

Home > Copper Nickel > Copper Nickel welded pipes

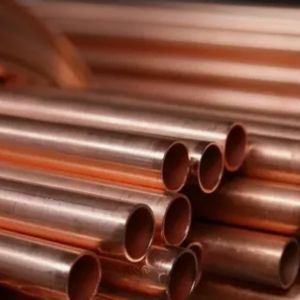

Aman Pipes and Tubes, being a Hyderabad, India-based manufacturer and exporter of copper nickel welded pipes, has become a trusted name in offering top quality. Copper Nickel welded pipes possess extraordinary corrosion resistance and strength. These pipes have numerous applications in marine, industrial, and power generation industries. Aman Pipes and Tubes focus on delivering dependable, strong, and long-lasting piping solutions adhering to strictly followed quality standards and state-of-the-art manufacturing techniques. The company has thus built a strong reputation across domestic and international markets for offering cost-effective, long-lasting products suited to meet the precise requirements of challenging environments.
Copper Nickel welded pipes are typically composed of 90% copper and 10% nickel, with small additions of iron and manganese to improve strength and corrosion resistance. These pipes demonstrate excellent resistance to seawater corrosion and biofouling. Mechanically, they exhibit a tensile strength of 310–345 MPa, yield strength of around 110 MPa, and elongation of approximately 30%. Their thermal stability, good weldability, and moderate machinability make them highly suitable for both high-pressure and high-temperature applications.
Specifications : ASTM / ASME SB 111 / 151 / 466
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Well Thickness : Between 0.15mm and 1.50 mm
Length : Single Random, Double Random & Required Length
Schedule : SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

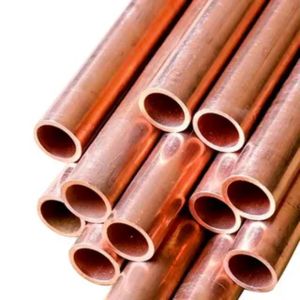

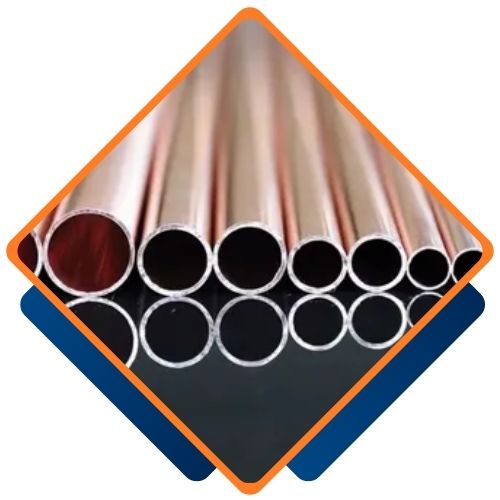

Types : Seamless / ERW / Welded / EFW / Fabricated / CDW

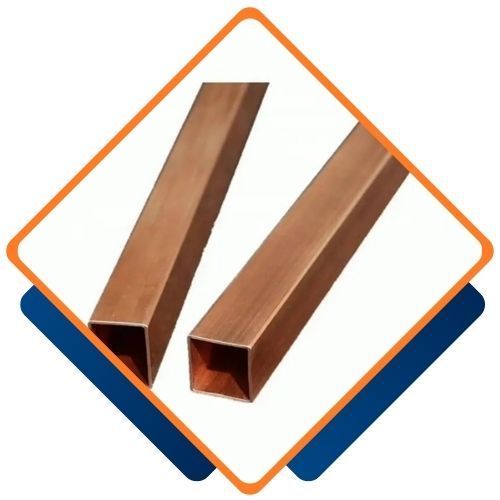

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
Grades : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 90-10 | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Cu-Ni 70-30 | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel 90-10 / 70-30 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 90-1000 psi | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel welded pipes from Aman Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Aman Pipes and Tubes, one of the largest suppliers of Copper Nickel welded pipes in Hyderabad, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for copper nickel products in the region.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Copper Nickel welded pipes to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.
| Dimension Tolerance | |||||
| Material | Ultimate Tensile Strength1000 psi (MPa) | Yield Strength 0.5% Ext.under Load 1000 psi (MPa) | YElongation % in 2 in. | Fatigue Strength (10×7 cycles) 1000 psi (MPa) | Burst Pressure* 1000 psi (MPa) |
| Copper-brazed Steel | 48-55 (0.330-0.380) | 28-34 (0.190-0.235) | 30-40 | 30 (0.210) | 19.5 (0.135) |
| C12200-Phosphorus deoxidized Copper | 32-38 (0.220-0.265) | 10-14 (0.070-0.100) | 45-60 | 10 (0.070) | 12 ( 0.083) |
| C70600-Copper Nickel 90-10 | 48-54 (0.330-0.370) | 16-22 (0.110-0.150) | 40-55 | 15 (0.100) | 19 (0.130) |
Copper Nickel welded pipes are extensively used in industries where corrosion resistance, durability, and thermal performance are essential. They are commonly found in shipbuilding for seawater cooling systems, ballast systems, and fire-fighting pipelines. In power plants, these pipes are used in heat exchangers, condensers, and desalination units. The chemical processing industry also relies on them for transporting corrosive fluids and gases. Additionally, they are used in offshore oil platforms, HVAC systems, and nuclear energy facilities due to their reliability, longevity, and resistance to harsh operational conditions.
