Carbon Steel IS 4923 Pipes

Home > Carbon Steel > Carbon Steel IS 4923 Pipes

Carbon Steel IS 4923 Pipes Manufacturer, Supplier and Exporter in Hyderabad, India

Aman Pipes and Tubes, a world-class manufacturer and supplier company in Hyderabad, India, provides high-standards Carbon Steel IS 4923 Pipes to meet the high standards of contemporary engineering. With an unwavering focus on quality, reliability, and customer satisfaction, the company provides precision-engineered pipes for structural and industrial purposes. The pipes come in different dimensions and thickness to meet individual client specifications. Supported by state-of-the-art manufacturing plants and professional manpower, Aman Pipes and Tubes is a reputable name in the supply of effective and affordable piping solutions in India and globally.

IS 4923 CS Pipes Supplier in Hyderabad, Carbon Steel IS 4923 Pipes Exporter in India, IS 4923 CS Pipes Manufacturer in Hyderabad , IS 4923 Carbon Steel Pipes Price List in Hyderabad, CS IS 4923 Pipes Distributor in Hyderabad, IS 4923 CS Pipes in India, IS 4923 CS Pipes Supplier in Hyderabad , Carbon Steel IS 4923 Pipes Distributor in India, IS 4923 Carbon Steel Pipes Sizes in mm

Carbon Steel IS 4923 Pipes are manufactured from carbon-manganese steel containing mainly carbon (up to 0.20%), manganese (up to 1.50%), phosphorus (max 0.05%), and sulfur (max 0.05%). Such pipes have very good mechanical characteristics with a minimum yield point of 310 MPa and tensile strength between 450 and 580 MPa. Their elongation is usually 23% or greater, varying based on thickness. Having high strength-to-weight ratio and good weldability, such pipes are perfectly suitable for structural applications and maintain durability even in harsh environments.

Carbon Steel IS 4923 Pipes Specification

size in Mm	5 To 1219.2
Schedule	Schedule XS, Schedule 160, Schedule 40, Schedule XXS, Schedule 80 Supplier and Manufacturer
Standard	JIS, EN, DIN, GB, IS, AISI, ASME, ASTM
Seamless Pipe Size in MM	4 to 219 Wall thickness: 0.5 to 20
Welded Pipe Size in MM	5 to 1219.2
Seamless Tube Size in MM	3.35 To 101.6
Length	Double Random, Single Random, Standard & Cut length
Wall Thickness in inch	0.020 to 0.220
Type	U bent, Straight, Seamless, Round, Welded, EFW, Tube Coil, ERW, Hydraulic, LSAW, Square, Fabricated, Boiler, Rectangular
Finish	BA, Polished, AP, MF
Form	Square, Hydraulic, Rectangular, Clad, U bent, Boiler, Hollow, LSAW, Straight, Round,
End	Beveled, Plain, Treaded
Pipe Marking	All Pipes are marked as follows: Supplier or Manufacturer’s Name, Standard, Grade, OD, Thickness, Length, Heat Number
Supplier & Distributors Located in	Santiago, Indore, Abu Dhabi, Gujarat, Ludhiana, Coimbatore, Surat, New Delhi, Tehran, Mexico, Pimpri Chinchwad, Perth, India, Gurgaon, Dammam, London, Noida, Tau, Howrah, Khobar, Ernakulam, Montreal, Ranchi, Lagos, Muscat, Ankara, Jamshedpur, Chennai, Port of Spain, Ahmedabad, Vadodara, Kuwait, Baroda, Calgary, Nagpur, Rajkot, Melbourne, Courbevoie, Caracas, Kolkata, Thiruvananthapuram, Manama, Mumbai, Ludhiana, Hyderabad, Gimhae si, Janeiro, Istanbul, Bogota, Karachi, Riyadh, Bangalore, Bengaluru, Kanpur, Sydney, Ahvaz

Carbon Steel IS 4923 Pipes Chemical Composition

Element	Carbon	Silicon	Manganese	Phosphorous	Phosphorous
YST 210	0.12% Maximum	0.03% to 0.08%	0.50% Maximum	0.05% Maximum	0.05% Maximum
YST 310	0.12% Maximum	0.03% to 0.08%	0.50% Maximum	0.05% Maximum	0.05% Maximum
YST 240	0.12% Maximum	0.03% to 0.08%	0.50% Maximum	0.05% Maximum	0.05% Maximum

Carbon Steel IS 4923 Pipes Mechanical Properties

Element	Tensile Strength	Yield Stress	Elongation
Element	Tensile Strength	Yield Stress	25.4 and under	over25.4
YST 210	330	210	12	20
YST 310	450	310	8	10
YST 240	410	240	10	15

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

IS 4923 Steel Pipe Supplier in Hyderabad, IS 4923 Carbon Steel Pipes Exporter in India, IS 4923 Pipes Sizes in mm, IS 4923 CS Pipes Manufacturer in Hyderabad , Carbon Steel IS 4923 Pipes Price List in Hyderabad, CS IS 4923 Pipes Distributor in Hyderabad, IS 4923 Carbon Steel Pipes in India, IS 4923 CS Pipes Supplier in Hyderabad , CS IS 4923 Pipes Distributor in India

Why Choose Carbon Steel IS 4923 Pipes from Aman Pipes and Tubes?

Choosing Carbon Steel IS 4923 Pipes from Aman Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Carbon Steel IS 4923 Pipes Weight Chart

Size	Other Diameter	Inner Diameter	Wall Thickness	Standard to XXHY	Weight	Section Modulus	Schedule	Gallon
3/4	1.05	0.824	0.113	STD	1.13	.0705	40	.0277
		0.742	0.154	XHY	1.48	.0853	80	.0225
		0.612	0.219		1.95	.1006	160	.0153
1/2	0.84	0.622	0.109	STD	0.85	.0407	40	.0158
		0.546	0.147	XHY	1.09	.0478	80	.0122
		0.464	0.188		1.31	.0528	160	.0088
1	1.315	1.049	0.133	STD	1.68	.1328	40	.0449
		0.957	0.179	XHY	2.17	.1606	80	.0374
		0.815	0.250		2.85	.1904	160	.0271
1 1/2	1.90	1.610	0.145	STD	2.72	.3262	40	.1058
		1.500	0.200	XHY	3.63	.4118	80	.0918
		1.338	0.281		4.86	.5079	160	.0730
1 1/4	1.66	1.380	0.140	STD	2.27	.2346	40	.0777
		1.278	0.191	XHY	3.00	.2913	80	.0666
		1.160	0.250		3.77	.3421	160	.0549
2	2.375	2.157	0.109		2.64	.4205	10	.1898
		2.067	0.154	STD	3.66	.5606	40	.1743
		1.939	0.218	XHY	5.03	.7309	80	.1534
		1.875	0.250		5.68	.8045		.1434
		1.813	0.281		6.29	.8666		.1344
		1.687	0.344		7.47	.9806	160	.1161
3	3.50	3.260	0.120		4.34	1.0411		.4336
		3.188	0.156		5.58	1.3122		.4147
		3.156	0.172		6.12	1.4265		.4064
		3.124	0.188		6.66	1.5342		.3984
		3.068	0.216	STD.	7.58	1.7241	40	.3840
		3.000	0.250		8.69	1.9372		.3672
		2.938	0.281		9.67	2.1207		.3521
		2.900	0.300	XHY	10.26	2.2253	80	.3431
		2.624	0.438		14.34	2.8774	160	.2811
2 1/2	2.875	2.635	0.120		3.53	.6870	10	.2833
		2.469	0.203	STD.	5.80	1.0640	40	.2487
		2.443	0.216		6.14	1.1169		.2435
		2.375	0.250		7.02	1.2468		.2301
		2.323	0.276	XHY	7.67	1.3386	80	.2202
		2.125	0.375		10.02	1.6371	160	.1842
3 1/2	4.0	3.760	0.120		4.98	1.3776	10	.5768
		3.548	0.226	STD.	9.12	2.3939	140	.5136
		3.500	0.250		10.02	2.6001		.4998
		3.438	0.281		11.17	2.8562		.4821
		3.364	0.318	XHY	12.52	3.1400	80	.4617
5	5.563	5.187	0.188		10.80	4.1161		1.0979
		5.125	0.219		12.51	4.7279		1.0716
		5.047	0.258	STD.	14.63	5.4500	40	1.0391
		5.001	0.281		15.87	5.8644		1.0204
		4.939	0.312		17.51	6.4074		.99647
		4.875	0.344		19.19	6.9358		.9696
		4.813	0.375	XHY	20.80	7.4300	80	.9449
		4.563	0.500		27.06	9.2534	120	.8495
		4.313	0.625		32.99	10.7976	160	.7590
4	4.5	4.260	0.120		5.62	1.7612	10	.7404
		4.188	0.156		7.24	2.2354		.7156
		4.124	0.188		8.67	2.6296		.6942
		4.094	0.203		9.32	2.8173		.6838
		4.062	0.219		10.02	3.0184		.6725
		4.026	0.237	STD.	10.80	3.2145	40	.6613
		4.000	0.250		11.36	3.3611		.6528
		3.938	0.281		12.67	3.7021	60	.6326
		3.876	0.312		13.97	4.0273		.6126
		3.826	0.337	XHY	15.00	4.2713	80	.5972
		3.624	0.438		19.02	5.1790	120	.5361
		3.438	0.531		22.53	5.8997	160	.4822
6	6.625	6.407	0.109		7.59	3.5769	5	1.6748
		6.357	0.134		9.30	4.3475	10	1.6488
		6.313	0.156		10.79	5.0107		1.6260
		6.249	0.188		12.94	5.9351		1.5937
		6.219	0.203		13.94	6.3804		1.5780
		6.187	0.219		15.00	6.8261		1.5620
		6.125	0.250		17.04	7.6905		1.5306
		6.065	0.280	STD.	18.99	8.4958	40	1.5008
		6.001	0.312		21.06	9.3416		1.4688
		5.937	0.344		23.10	10.111		1.4391
		5.875	0.375		25.05	10.893		1.4082
		5.761	0.432	XHY	28.60	12.224	80	1.3541
		5.625	0.500		32.74	13.711		1.2909
		5.501	0.562		36.43	14.9806	120	1.2346
		5.375	0.625		40.09	16.1821		1.1787
		5.187	0.719		45.39	17.8243	160	1.0977
		4.897	0.864	XXHY	53.21	20.025		.9784
		4.625	1.000		60.13	21.7719		.8727
		4.375	1.125		66.14	23.1237		.7809

IS 4923 Pipe Size Chart

NB	Size	OD	40S	5S	10S	S10	S20	S40	S60	XS/80S	S80	S100	S120	S140	S160	XXS
NB	Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
	1/8”	10.29			1.2			1.73			2.41
	1/4”	13.72			1.7			2.24			3.02
	3/8”	17.15			1.7			2.31			3.2
15	1/2”	21.34	2.8	1.7	2.1			2.77		3.73	3.73				4.78	7.47
20	3/4”	26.67	2.9	1.7	2.1			2.87		3.91	3.91				5.56	7.82
25	1”	33.4	3.4	1.7	2.8			3.38		4.55	4.55				6.35	9.09
32	1 1/4”	42.16	3.6	1.7	2.8			3.56		4.85	4.85				6.35	9.7
40	1 1/2”	48.26	3.7	1.7	2.8			3.68		5.08	5.08				7.14	10.2
50	2”	60.33	3.9	1.7	2.8			3.91		5.54	5.54				9.74	11.1
65	2 1/2”	73.03	5.2	2.1	3.1			5.16		7.01	7.01				9.53	14
80	3”	88.9	5.5	2.1	3.1			5.49		7.62	7.62				11.1	15.2
90	3 1/2”	101.6	5.7	2.1	3.1			5.74		8.08	8.08
100	4”	114.3	6	2.1	3.1			6.02		8.56	8.56		11.1		13.5	17.1
125	5”	141.3	6.6	2.8	3.4			6.55		9.53	9.53		12.7		15.9	19.1
150	6”	168.3	7.1	2.8	3.4			7.11		10.97	11		14.3		18.3	22
200	8”	219.1	8.2	2.8	3.8		6.4	8.18	10.3	12.7	12.7	15.1	19.3	20.6	23	22.2
250	10”	273.1	9.3	3.4	4.2		6.4	9.27	12.7	12.7	15.1	19.3	21.4	25.4	28.6	25.4
300	12”	323.9	9.5	4	4.6		6.4	10.3	14.3	12.7	17.5	21.4	25.4	28.6	33.3	25.4
350	14”	355.6	9.5	4	4.8	6.4	7.9	11.1	15.1	12.7	19.1	23.8	27.8	31.8	35.7
400	16”	406.4	9.5	4.2	4.8	6.4	7.9	12.7	16.7	12.7	21.4	26.2	31	36.5	40.5
450	18”	457.2	9.5	4.2	4.8	6.4	7.9	14.3	19.1	12.7	23.8	29.4	34.9	39.7	45.2
500	20”	508	9.5	4.8	5.5	6.4	9.5	15.1	20.6	12.7	26.2	32.5	38.1	44.5	50
550	22”	558.8	9.5	4.8	5.5	6.4	9.5		22.2	12.7	28.6	34.9	41.3	47.6	54
600	24”	609.6	9.5	5.5	6.4	6.4	9.5	17.5	24.6	12.7	31	38.9	46	52.4	59.5
650	26”	660.4	9.5			7.9	13			12.7
700	28”	711.2	9.5			7.9	13			12.7
750	30”	762	9.5	6.4	7.9	7.9	13			12.7
800	32”	812.8	9.5			7.9	13	17.5		12.7
850	34”	863.6	9.5			7.9	13	17.5		12.7
900	36”	914.4	9.5			7.9	13	19.1		12.7

Largest Carbon Steel IS 4923 Pipes Supplier in Hyderabad, India

Aman Pipes and Tubes is one of the largest Carbon Steel IS 4923 Pipes suppliers in Hyderabad, India, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.

IS 4923 CS Pipes Exporter in India, Carbon Steel IS 4923 Pipes Price List in Hyderabad, IS 4923 Pipes Supplier in India, CS IS 4923 Pipes Exporter in Hyderabad , IS 4923 Pipes Exporter in Hyderabad, IS 4923 Carbon Steel Pipes Size Chart, IS 4923 Pipes Price in India, CS IS 4923 Pipes Weight Chart, IS 4923 Carbon Steel Pipes Thickness, IS 4923 CS Pipes Supplier in Hyderabad, IS 4923 Pipes Stockist in India

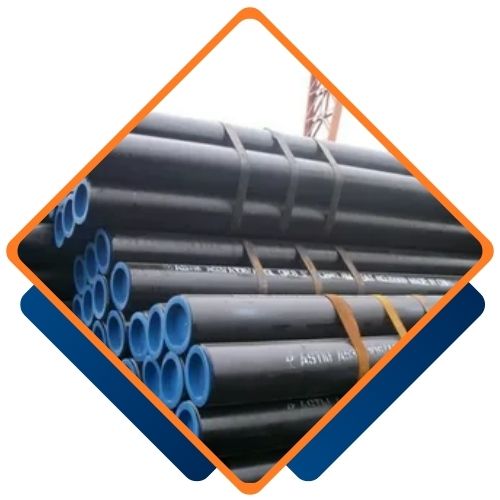

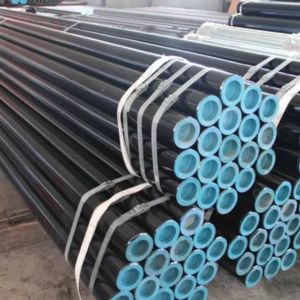

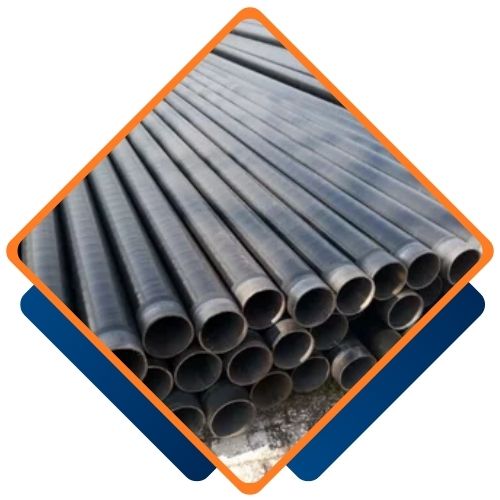

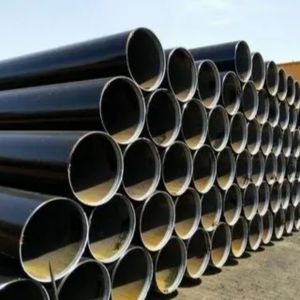

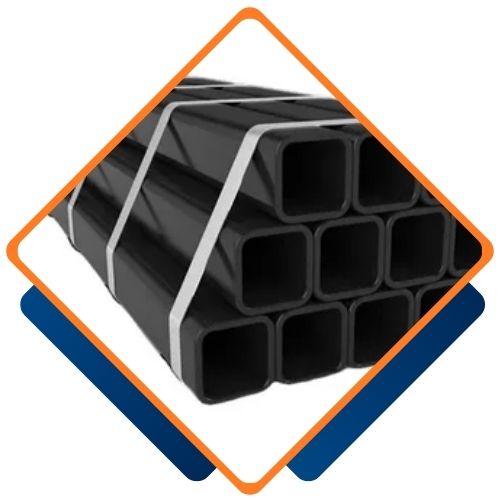

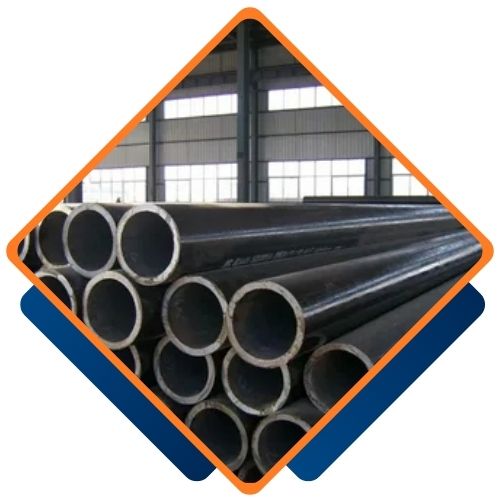

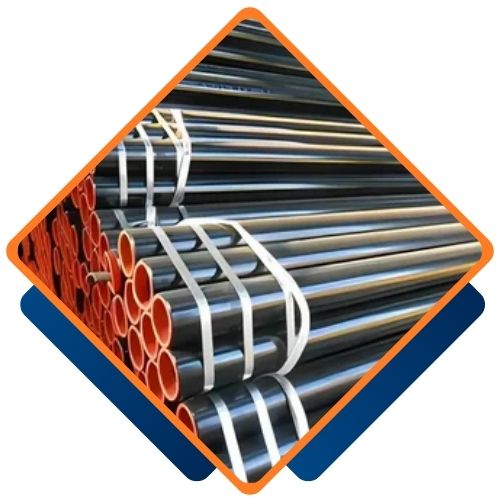

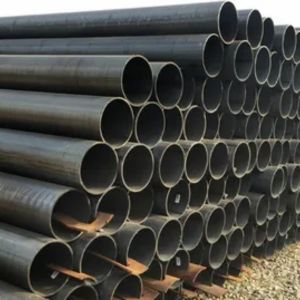

Types of Carbon Steel IS 4923 Pipes

Are Custom Sizes Available for Carbon Steel IS 4923 Pipes?

Yes, we offer custom sizes for Carbon Steel IS 4923 Pipes to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.

IS 4923 Carbon Steel Pipes Exporter in India, Carbon Steel IS 4923 Pipes Price List in Hyderabad, IS 4923 Pipes Supplier in India, Carbon Steel IS 4923 Pipes Exporter in Hyderabad , IS 4923 Carbon Steel Pipes Exporter in Hyderabad, IS 4923 CS Pipes Size Chart, IS 4923 Carbon Steel Pipes Price in India, IS 4923 Pipes Weight Chart, IS 4923 CS Pipes Thickness, IS 4923 Carbon Steel Pipes Supplier in Hyderabad, IS 4923 Pipes Stockist in India

Carbon Steel IS 4923 Pipes are utilized extensively across infrastructure and industrial sectors for general and structural engineering applications. These pipes are frequently used in the construction of bridges, buildings, towers, and frameworks because of their excellent strength and stability. Moreover, these pipes are also preferred to make heavy machinery, conveyors, and frameworks for transportation equipment. Their weldability, cuttability, and formability make them suitable for contractors and fabricators who want dependable, durable materials for demanding applications in commercial and industrial projects.
