Home > Carbon Steel > Carbon Steel ERW Pipe

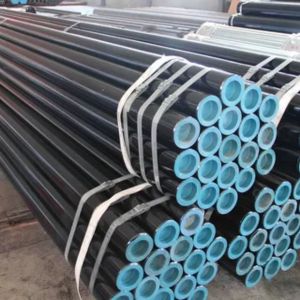

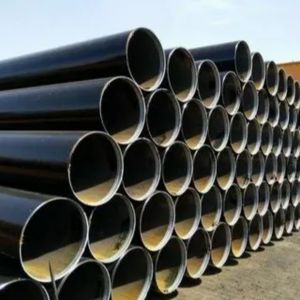

Aman Pipes and Tubes, based in Hyderabad, India, stands out as a top manufacturer and supplier of Carbon Steel ERW Pipes. Known for their exceptional quality and precision, these pipes are crafted using cutting-edge Electric Resistance Welding (ERW) technology, ensuring they boast superior strength, durability, and seamless performance. Tailored to meet a variety of industrial and structural demands, Aman Pipes and Tubes provides products that adhere to international standards. Their Carbon Steel ERW Pipes are an excellent choice for reliable and cost-effective piping systems across numerous industries.
The Carbon Steel ERW Pipes are made from low or medium-carbon steel, incorporating balanced elements like manganese, silicon, phosphorus, and sulfur to achieve the best possible properties. These pipes are known for their impressive tensile strength, high yield strength, and good ductility, making them robust enough for demanding applications. The ERW welding process helps eliminate defects, resulting in a smooth and uniform structure. With outstanding resistance to wear and mechanical stress, these pipes are perfect for high-pressure and high-temperature environments, ensuring they last over time.
Standard : ASTM A53, A106, API 5L, ASME B36
Size : 1/2” NB – 24” NB
Materials : Q235, Q345, A53B, A106B, API 5L B, X42, X46, X52, X60, X65
Wall Thickness : SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140,SCH160,XXS DIN, JIS standard thickness
Length : Fixed: 5.8, 6.0, 11.8, 12.0m Random length: 5-12m
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Carbon Steel ERW Pipe from Aman Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Aman Pipes and Tubes is one of the largest Carbon Steel ERW Pipe suppliers in Hyderabad, India, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.
| Nominal | Pipe size | OD mm | Schedule 20 | Schedule 30 | Schedule STD | Schedule 40 | Schedule 60 | Schedule Extra | Strong (XS) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mm | Inch | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | |
| 3 | 1/8 | 10.3 | 1.73 | 0.37 | 1.73 | 0.357 | 2.41 | 0.47 | ||||||
| 6 | ¼ | 13.7 | 2.24 | 0.63 | 2.24 | 0.625 | 3.02 | 0.804 | ||||||
| 10 | 3/8 | 17.1 | 2.31 | 0.84 | 2.31 | 0.84 | 3.2 | 1.1 | ||||||
| 15 | ½ | 21.3 | 2.77 | 1.26 | 2.77 | 1.26 | 3.73 | 1.62 | ||||||
| 20 | ¾ | 26.7 | 2.87 | 1.69 | 2.87 | 1.68 | 3.91 | 2.2 | ||||||
| 25 | 1 | 33.4 | 3.38 | 2.5 | 3.38 | 2.5 | 4.55 | 3.24 | ||||||
| 32 | 11/4 | 42.2 | 3.56 | 3.39 | 3.56 | 3.38 | 4.85 | 4.47 | ||||||
| 40 | 11/2 | 48.3 | 3.68 | 4.05 | 3.68 | 4.05 | 5.08 | 5.41 | ||||||
| 50 | 2 | 60.3 | 3.9 | 5.44 | 3.9 | 5.44 | 5.5 | 7.48 | ||||||
| 65 | 21/2 | 73 | 5.2 | 8.63 | 5.16 | 8.63 | 7 | 11.41 | ||||||
| 80 | 3/8 | 88.9 | 5.5 | 11.3 | 5.5 | 11.3 | 7.62 | 15.3 | ||||||
| 90 | 31/2 | 1.6 | 5.74 | 13.57 | 5.74 | 13.57 | 8.08 | 18.63 | ||||||
| 100 | 4 | 114.3 | 6.02 | 16.07 | 6.02 | 16.07 | 8.56 | 22.3 | ||||||
| 125 | 5 | 141.3 | 6.6 | 21.77 | 6.55 | 21.77 | 9.53 | 30.9 | ||||||
| 150 | 6 | 168.3 | 7.11 | 28.26 | 7.11 | 28.26 | 10.97 | 42.5 | ||||||
| 200 | 8 | 219.1 | 6.35 | 33.3 | 7 | 36.8 | 8.2 | 42.5 | 8.2 | 42.5 | 10.3 | 53.1 | 12.7 | 64.6 |
| 250 | 10 | 273 | 6.35 | 41.7 | 7.8 | 51.3 | 9.27 | 60.3 | 9.27 | 60.3 | 12.7 | 81.5 | 12.7 | 81.5 |
| 300 | 12 | 323.9 | 6.35 | 49.7 | 8.4 | 65.2 | 9.53 | 73.8 | 10.3 | 79.7 | 14.3 | 109 | 12.7 | 97.4 |
| 350 | 14 | 355.6 | 7.92 | 68.1 | 9.53 | 81.3 | 9.53 | 81.3 | 11.13 | 94.3 | 15.1 | 126.4 | 12.7 | 107 |
| 400 | 16 | 406.4 | 7.92 | 77.9 | 9.5 | 93.3 | 9.53 | 93.3 | 12.7 | 123 | 16.7 | 160 | 12.7 | 123 |
| 450 | 18 | 457.2 | 7.92 | 87.8 | 11.1 | 122 | 9.53 | 105 | 14.3 | 156 | 19 | 206 | 12.7 | 130 |
| 500 | 20 | 508 | 9.53 | 117.2 | 12.7 | 155.1 | 9.53 | 177.2 | 15.1 | 183 | 20.6 | 248 | 12.7 | 155.1 |
| 550 | 22 | 558.8 | 9.53 | 129 | 12.7 | 171 | 9.53 | 129 | 22.2 | 294 | 12.7 | 171 | ||
| 600 | 24 | 609.6 | 9.53 | 141 | 14.3 | 210 | 9.53 | 141 | 17.4 | 255 | 24.5 | 355 | 12.7 | 187 |
Yes, we offer custom sizes for Carbon Steel ERW Pipe to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.
Carbon Steel ERW Pipes find extensive use in industries such as oil and gas, construction, automotive, and water distribution. Their sturdy design and corrosion resistance make them ideal for fluid transportation systems, including water pipelines, gas distribution networks, and oil rigs. They are also utilized in structural applications like scaffolding, columns, and trusses, thanks to their high strength-to-weight ratio. Additionally, these pipes are favored in the automotive industry for creating exhaust systems and chassis. Their versatility and cost-effectiveness make them essential across a wide range of industrial sectors.
