Home > Carbon Steel > Carbon Steel A106 Grade B Pipes

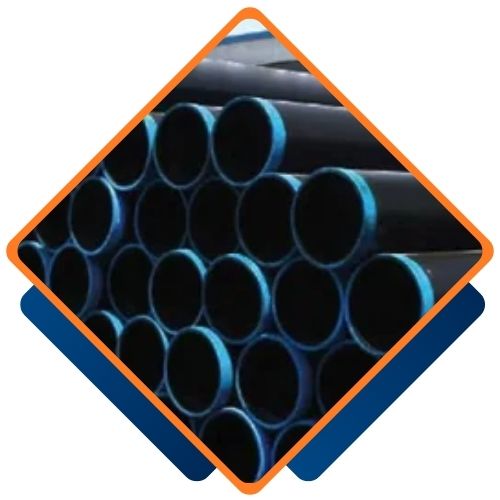

Aman Pipes and Tubes, based in Hyderabad, India, stands out as a top manufacturer and supplier of Carbon Steel A106 Grade B Pipes, recognized for their exceptional quality and high-performance piping solutions. These pipes are crafted in line with ASTM standards, making them perfect for high-temperature and high-pressure applications. Aman Pipes and Tubes guarantees that every A106 Grade B pipe adheres to strict quality and dimensional standards, ensuring they are suitable for a variety of industrial sectors. With a strong commitment to customer satisfaction, cutting-edge manufacturing capabilities, and prompt delivery, the company has built a solid reputation for excellence in both the Indian and global piping markets.
Carbon Steel A106 Grade B Pipes are crafted with a composition that features Carbon (max 0.30%), Manganese (0.29–1.06%), Phosphorus (max 0.035%), and Sulfur (max 0.035%). These seamless pipes boast a minimum yield strength of 240 MPa and a minimum tensile strength of 415 MPa. They showcase impressive mechanical properties, including good ductility and toughness, even under high temperatures. Designed for high-pressure and high-temperature settings, A106 Grade B pipes deliver reliable performance and excellent weldability, making them a go-to choice for steam lines, power plants, and refineries.
| Standards | ASTM, ASME and API, ANSI B 36.10 |
|---|---|
| Grades | ASTM A106 Grade A, ASTM A106 Grade B, ASTM A106 Grade C |
| Size | 1/2” NB to 36” NB |
| Thickness | 3-12mm |
| Schedules | SCH 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier |
| Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round, Hydraulic Etc |
| Length | Min 3 Meters, Max18 Meters, or according to customer’s requirement |
| End | Plain End, Beveled End, Treaded |
| Specialized in | Large Diameter ASTM A106 Grade B Pipe |
| Additional Testing | Mill Test Certificates, EN 10204 3.1, Chemical /Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports, India Boiler Regulations (IBR) Test Certificate, NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR |
| ASME Standard | B36.10M Welded and Seamless Wrought Steel Pipe |
| ANSI Standard | B1.20.1 Pipe Threads, General Purpose |
| Standard | Grade | Process | Chemical Composition % | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C max | Mn* | P max | S max | Si min | Cr˟ max | Cu˟ max | Ni˟ max | Mo˟ max | V˟ max | |||
| ASTM A106-15 | B | SMLS | 0.30* | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| ASTM A106-15 | C | SMLS | 0.35* | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| ASTM A53-12 | B | SMLS | 0.30* | 1.20 | 0.05 | 0.045 | — | 0.40 | 0.40 | 0.40 | 0.15 | 0.08 |
| ASTM A106 Grade A | ASTM A106 Grade B | ASTM A106 Grade C | ||
|---|---|---|---|---|
| ASTM A106 | Tenside strength, min, psi (MPa) | 48000(330) | 60000(415) | 70000(485) |
| Yield strength, min, psi (MPa) | 30000(205) | 35000(240) | 40000(275) |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Carbon Steel A106 Grade B Pipes from Aman Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
| NPS [DN Designator] | Over | Under | ||
|---|---|---|---|---|
| in. | mm | in. | mm | |
| 1/8 to 1-1/2 [6 to 40], incl | 1/64 (0.015) | 0.4 | 1/64 (0.015) | 0.4 |
| Over 1-1/2 to 4 [40 to 100], incl | 1/32 (0.031) | 0.8 | 1/32 (0.031) | 0.8 |
| Over 4 to 8 [100 to 200], incl | 1/16 (0.062) | 1.6 | 1/32 (0.031) | 0.8 |
| Over 8 to 18 [200 to 450], incl | 3/32 (0.093) | 2.4 | 1/32 (0.031) | 0.8 |
| Over 18 to 26 [450 to 650], incl | 1/8 (0.125) | 3.2 | 1/32 (0.031) | 0.8 |
| Over 26 to 34 [650 to 859], incl | 5/32 (0.156) | 4.0 | 1/32 (0.031) | 0.8 |
| Over 34 to 48 [850 to 1200], incl | 3/16 (0.187) | 4.8 | 1/32 (0.031) | 0.8 |
| Standard | Permissible Variations in Outside Diameter | ||
|---|---|---|---|
| NPS” | OVER | UNDER | |
| ASTM A53-12 | 1-1/2 and less | 1/64” (0.015”) | 1/64” (0.015”) |
| ASTM A53-12 | 2 and over | 1% of OD | 1% of OD |
| ASTM A106-15 | 1/8 to 1-1/2 | 1/64” (0.015”) | 1/64” (0.015”) |
| ASTM A106-15 | Over 1-1/2 to 4 | 1/32” (0.031”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 4 to 8 | 1/16” (0.062”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 8 to 18 | 3/32” (0.093”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 18 to 26 | 1/8” (0.125”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 26 to 34 | 5/32” (0.156”) | 1/32” (0.031”) |
| ASTM A106-15 | Over 34 to 48 | 3/16” (0.187”) | 1/32” (0.031”) |
Aman Pipes and Tubes is one of the largest Carbon Steel A106 Grade B Pipes suppliers in Hyderabad, India, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.
Yes, we offer custom sizes for Carbon Steel A106 Grade B Pipes to meet your specific requirements. Our team at Aman Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@amanpipesandtubes.co.in.
Carbon Steel A106 Grade B Pipes find extensive use in sectors like oil and gas, petrochemicals, power generation, refineries, and chemical processing. These seamless pipes are perfect for transporting steam, gas, and fluids under high temperatures and pressures. Their strength, toughness, and resistance to corrosion make them ideal for boiler piping, heat exchangers, pressure vessels, and process piping systems. A106 Grade B pipes are also favored in shipbuilding and structural applications. Aman Pipes and Tubes offers these pipes in a range of sizes and thicknesses, catering to the precise needs of critical industrial applications.
