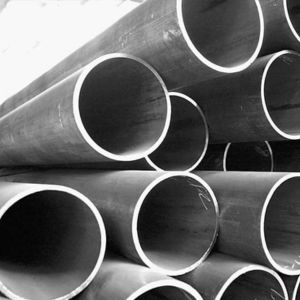

Home > Alloy Steel> ASTM A335 Gr P22 Seamless Pipe
Aman Pipes and Tubes, an Indian Hyderabad-based company, is a leading manufacturer and exporter of ASTM A335 Gr P22 Seamless Pipes, providing high-grade alloy steel solutions for demanding industrial processes. Renowned for their quality, durability, and customer-centric approach, Aman Pipes and Tubes serves different industries with international standards and specifications-based pipes. With a solid distribution network and a veteran team, the organization is able to deliver on time and at competitive prices, a reliable option for customers in the power plant, petrochemical sector, and refineries that demand high-performance seamless piping solutions.
ASTM A335 Gr P22 Seamless Pipes contain Chromium (1.9–2.6%) and Molybdenum (0.87–1.13%) as the major alloying elements, along with Carbon, Manganese, Phosphorus, Sulfur, and Silicon in minor amounts. These pipes made of alloy steel contain very good mechanical properties, such as a minimum tensile strength of 415 MPa and a yield strength of 205 MPa. They also contain good hardness, high creep strength, and excellent resistance to oxidation and thermal stress, which makes them ideal for applications in elevated temperature.
| ASTM A335 P22 Size | : | 1/8NB TO 24NB IN |
| ASTM A335 P22 Standards | : | ASTM A 335, ASME SA 335, ANSI B36.10 |
| ASTM A335 P22 Type | : | Seamless |
| ASTM A335 P22 Specialized in | : | Large Diameter Size |
| ASTM A335 P22 Outer Dimensions | : | 19.05 – 114.3mm |
| ASTM A335 P22 Wall Thickness | : | 2.0 – 14 mm |
| ASTM A335 P22 Length | : | max 16000mm |
| ASTM A335 P22 Schedule | : | Schedule 20 – Schedule XXS (heavier on request) up to 250 thk. |
| ASTM A335 P22 Form | : | Round, Square, Rectangular, Hydraulic Etc. |
| ASTM A335 P22 Length | : | Single Random, Double Random & Cut Length. |
| ASTM A335 P22 Tubing End | : | Plain End, Beveled End, Treaded |
| Grade | C % | Mn % | P % | S % | Si % | Cr % | Mo % |
|---|---|---|---|---|---|---|---|
| P22 | 0.05 – 0.15 | 0.30 – 0.60 | 0.025 max | 0.025 max | 0.50 max | 1.90 – 2.60 | 0.87 – 1.13 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % |
|---|---|---|---|
| P22 | 415 min | 205 min | 30 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing ASTM A335 Gr P22 Seamless Pipe from Aman Pipes and Tubes ensures superior corrosion resistance, excellent thermal conductivity, high strength, and long-lasting performance. Our commitment to quality and precision makes our pipes and tubing ideal for demanding industrial applications.
Aman Pipes and Tubes is the largest supplier of ASTM A335 Gr P22 Seamless Pipe in Hyderabad, India. We offer premium-quality, corrosion-resistant pipes and tubing ideal for marine, chemical, and industrial applications, with our reliable delivery and customized solutions to meet diverse client needs.
Yes, custom sizes are available for ASTM A335 Gr P22 Seamless Pipe to meet specific requirements. These pipes can be tailored for various industrial applications. For more details, contact us at sales@amanpipesandtubes.co.in.
ASTM A335 Gr P22 Seamless Pipes are extensively used in power plants, oil refineries, and petrochemical industries where pressure and temperature conditions are severe. The pipes are well suited for superheater and reheater tubes, steam lines, boiler systems, and heat exchangers. Their superior thermal and mechanical properties make them operate in a safe and dependable manner under extreme conditions. Also, their superior weldability and formability ensure that they are an engineering material of choice for applications that require strength, long working life, as well as resistance to thermal fatigue and corrosion.
